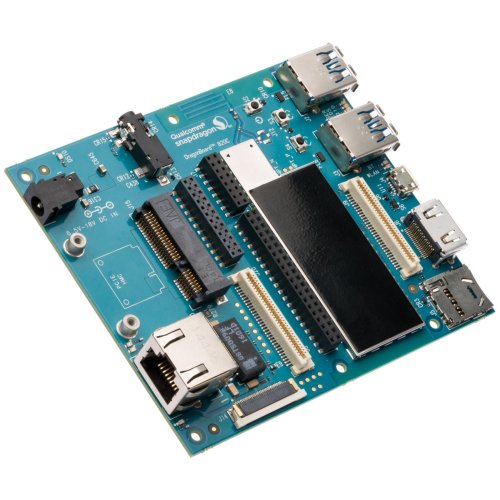

• 96Boards DragonBoard 820C

The DragonBoard 820c development board is based on the Qualcomm® Snapdragon™ 820E embedded platform with the custom 64-bit Qualcomm® Kryo™ quad-core CPU and is compliant with the 96Boards Consumer Edition Extended Version specification managed by Linaro. Included on the board is 3GB PoP LPDDR4 SDRAM and 32 GB UFC Flash.  Connectivity options include: WLAN 802.11ac, Bluetooth 4.2, GbE, USB 2.0 and 3.0, and GPS.  The Qualcomm® Adreno™ 530 @ upto 653MHz GPU supports 4K UltraHD@30fps video playback and capture with H.264 (AVC) and H.265 (HEVC).  The board supports 3 image sensors up to 28 MP.

This board currently supports the Linux Debian operating system with planned Linux OpenEmbedded support. Support is provided by 96Boards.org at https://discuss.96boards.org/c/products/dragonboard820c

Please refer to Hardware Manual and Getting Started Instructions at https://www.96boards.org/product/dragonboard820c/. Additional documentation is available at https://developer.qualcomm.com/db820c

The recommended power supply part number is WM24P6-12-A-QL

CPU: Snapdragon 820E embedded platform, custom 64-bit Kryo quad-core CPU up to 2.35GHz 35GHz , 14nm FinFET process technology

Graphics: Qualcomm® Adreno™ 530 GPU OpenGL ES 3.1 + AEP, OpenCL2.0 Full1, Vulcan, Renderscript, 64-bit virtual addressing

DSP: Qualcomm® Hexagon™ 680 DSP with Hexagon vector eXtentions and Low Power Island for sensor processing

Sensors: Dedicated low-power SSC with DSP to support always-on use cases

Display: 4k60 FPS decode 10-bit over HDMI 2.0 4K30 Miracast 2.0 streaming HEVC 10-bit and VP9 decode Direct Stream Video for Wireless Display, 3:1 Frame Buffer Compression ratio

Camera: Dual 14-bit ISP – 28 MP and 13 MP, 600 MHz; 32 MP 30 ZSL with dual-ISP; 16 MP 30 ZSL with single-ISP; TempNR v2, ASF3, Demosaic, Dual-AF, LTM, CAC, Green Imbalance, Pedestal, stats upgrades, and image quality enhancements, expansion connector on board 1x 96boards Camera Interface (4-L MIPI CSI)

Memory: Quad-channel, 16-bit, 3 GB PoP LPDDR4 SDRAM designed for 1866 MHz clock rate / UFS2.0 gear 3 (1-lane) 32GB, and SD3.0

Connectivity: Dual-Band 2x2 802.11ac and Bluetooth 4.2 supported through QCA6174A Combo Module

Location: Support for 6 satellite systems: GPS, GLONASS, Beidou, Galileo, QZSS, SBAS

OS Support: Linux Debian with planned Linux OpenEmbedded support

Expansion Connectors:

  • 1x 96boards 40 pin Low-Speed connector (UART x2, SPI, I2S, I2C x2, GPIO x12, DC power)
  • 1x 96boards 60 pin High-Speed connector (4L-MIPI DSI, USB, I2C x2, 2L+4L-MIPI CSI)
  • 2x Analog expansion connector (headset, speaker via sound-wire interface, microphones, line-outs)
  • 1x 60 pin High-Speed connector (secondary 4L-MIPI DSI, SSC serial busses, TSIF – connection available only in hardware)

I/O Interfaces:

  • HDMI Full-size Type A connector (4K@60fps)
  • 1x USB 2.0 micro B (device mode only), 2x USB 3.0 type A (host mode only), micro SD card slot
  • 1x GbE RJ45, 1x PCIe HMC, headset


Production Ready SOMs

For production ready 820 based SOMs, please view the products below.

eInfochips EIC-Q82-200

eInfochips EIC-Q820-210

Intrinsyc QC-DBI00004




Specifications:

Type                                                   Development Board
Supported Device                              Qualcomm Kyro
Supported Device Technology           Application Processor and SOC
RAM Size                                           3GB
Program Memory Size                       32GB
Program Memory Type                      Flash
USB                                                   2
Ethernet                                             1
I2C                                                     1
SPI                                                     1
UART                                                 1
GPIO                                                  1
