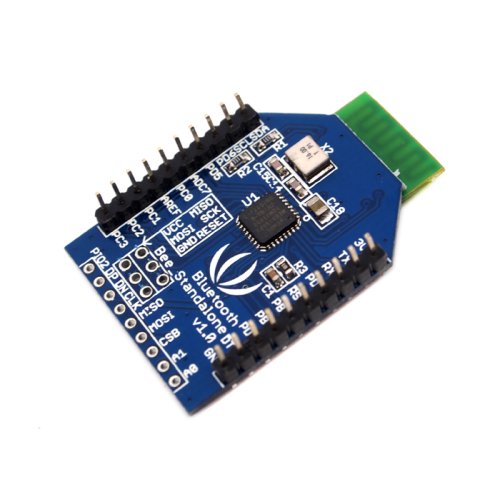

Save that extra Arduino you have lying around for another project, this two-for-one device has the Arduino built-in.  Bluetooth Bee with Arduino is an enhanced version of the Bluetooth Bee.  There is an onboard ATMEGA168 to it to make it a full-featured Arduino while maintaining the same footprint and instruction set as the Bluetooth Bee.  Plus, it still allows you to stack it on XBee Carrier,  XBee® Shield, and UartSBee for expansion or reprogramming

Features
  • Small footprint
  • Identical settings and pairing methods as the Bluetooth Bee
  • Software serial port adopted between the Bluetooth module and ATMEGA168
  • Remains compatibile with XBee Carrier, XBee® Shield, and UartsBee for expansion
  •
Hardware Features
  • Typical -80dBm sensitivity
  • +4dBm RF transmit power
  • Fully qualified Bluetooth V2.0+EDR 3Mbps Modulation
  • Operating voltage:  3.3v
  • Built-in antenna
Software Features
  • Software serial port communication method
  • Default Baud rate:  38400
  • Supported Baud rate:  9600, 19200, 38400, 57600, 115200, 230400, 460800
  • Under RTS/CTS data transmit-receive framework
  • Auto connect the last device on power as default
  • Auto-reconnect in 30 minutes after out-of-range disconnection
  • Ability to disconnect via a rising edge on PC2
  • Working status signal on PB2:  low – not working, high – working
  • Paired-up status indicator on PIO 10(a red LED) and PIO 11(a blue LED):
    • Paired:  red and blue blinks 1 time/2s in interval
    • Unpaired:  blue blinks 2 times/sec
  • Default pincode:  0000
  •
Application Ideas
  • Bluetooth communication for Arduino projects
  • Turn your computer into a Bluetooth device with UartSBee’s USB interface
  •
Documents

Please visit wiki page for more info about this product.



Write a review

Please login or register to review

Bluetooth Bee - Standalone

  • Product Code:Seeed-Bluetooth-Bee
  • Reward Points:22
  • Availability:Out Of Stock
  • रo 2,200.00

  • Ex Tax:रo 2,200.00
  • Price in reward points:2200

  • 50 or more रo 2,060.00
  • 90 or more रo 2,087.00
