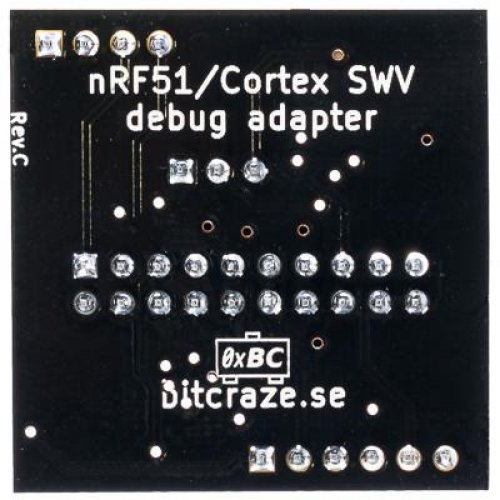

One of our goals is to make development with the Crazyflie 2.X as easy as possible. Due to the small size of the platform there are limitations in what connectors we can have and therefore we designed a debug-adapter kit that makes connecting a debugger to either of the MCUs a lot easier, by converting the connector pinouts to standard JTAG and SWD pinouts.

Compatibility:

Works with the Crazyflie 2.X

Features:

Includes everything needed to easily debug the MCUs (STM32F4 and nRF51)
Multiple debug pinouts supported (including 20-pin JTAG and 10-pin Cortex debug)

Specifications:

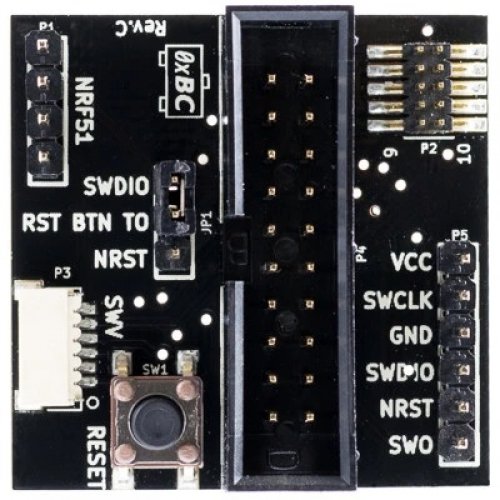

Supported debugger pinouts:

Custom pinout that matches ST Discovery board debug interfaces
Standard Cortex SWV debug 2x6 1.27mm (50mil) SWV interface
Standard 2x10 2.54mm (100mil) JTAG interface

Has reset button with jumper for reset support on either STM32F4 and nRF51

Documents:

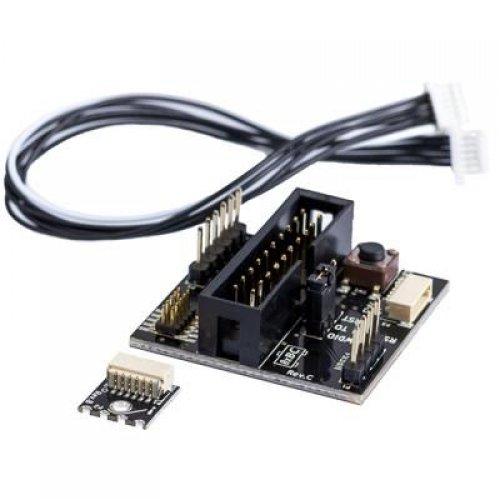

Package Includes:

1 x Crazyflie 2.X debug adapter
1 x nRF51 debug connector
1 x Nylon screw and nut for nRF51 debug connector

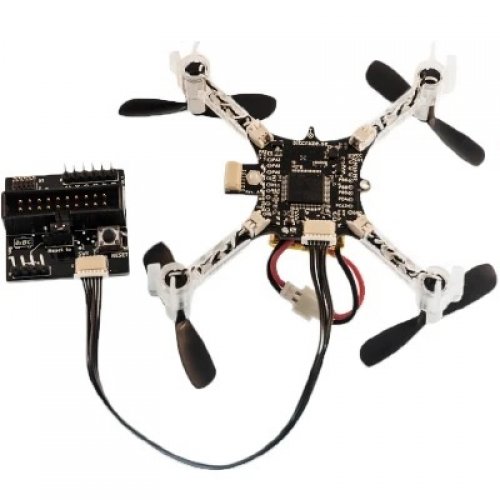

1 x 6-pin debug cable for connecting to the Crazyflie 2.X

Debug adapter

Brand: Bitcraze
Product Code:BTZ-Debug-adapter
Reward Points:34
Availability:In Stock

रo 4,078.08
Ex Tax:रo 3,456.00
Price in reward points:3456

Qty

0 reviews / Write a review
