Atmel-ICE is a powerful development tool for debugging and programming ARM Cortex-M based SAM and AVR microcontrollers with on-chip debug capability.
Features:
- Supports JTAG, SWD, PDI, TPI, aWire, SPI, debugWIRE and UPDI interfaces
- Full source-level debugging in Atmel Studio
- Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
- Up to 128 software breakpoints
- 1.62 to 5.5V target operation
- USB powered
- Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
Documents:
Warranty:
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

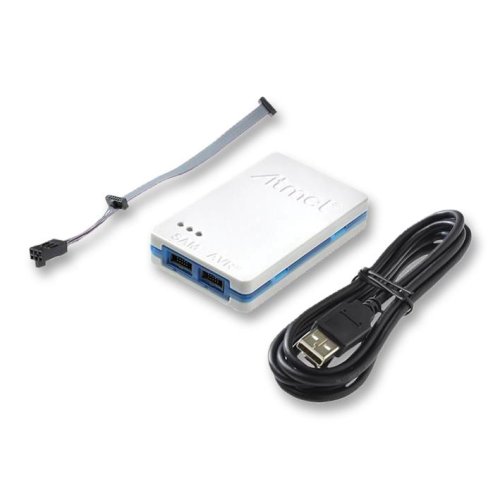

Package Includes:
-
Full Kit:
- 1 x Encapsulated main unit
- 1 x USB cable
- 1 x 10-lead squid cable
- 1 x Flat cable (10-pin 50mil connector and 6-pin 100mil connector)
- 1 x Adapter board (20-pin 100mil connector, 6-pin 50mil connector and 10-pin 100mil connector)
-
Basic Kit:
- 1 x Encapsulated main unit
- 1 x USB cable
- 1 x Flat cable (10-pin 50mil connector and 6-pin 100mil connector)
ATMEL-ICE Kit
- Brand: Microchip Technology
- Product Code:LP-ATMEL-ICE-Kit
- Reward Points:125
- Availability:Back-order
-
रo 14,761.80
- Ex Tax:रo 12,510.00
- Price in reward points:12510
