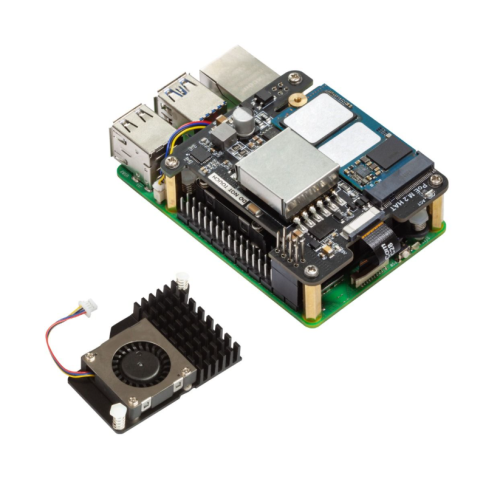

UCTRONICS NVMe PoE+ HAT for Raspberry Pi 5: Combine power, data, and high-speed storage in one compact board. This PoE+ HAT delivers up to 5V 5A (with IEEE 802.3at or above) through a single Ethernet cable, while the M.2 NVMe slot (2230/2242, M-Key / B+M Key) offers up to 800MB/s read/write speeds. Designed for Raspberry Pi 5, it connects via the PCIe 16-pin interface, supports Gen2/Gen3 modes, features onboard cooling, and LED indicators for power and activity.

Features:

• High Output Power: This NVMe PoE hat is a fully isolated switch-mode power supply (SMPS), delivering up to 25W, 5V/5A (MAX) output. Ensure stable power for your Raspberry Pi 5 and connected peripherals. Note: To achieve 5A output, use an IEEE 802.3at or higher PoE input device. Do NOT connect the Power supply to USB-C on Pi 5 board when you are using PoE+ Hat as a power supply, it may damage your device !!!
• Power over Ethernet (PoE+) Support: This raspberry pi 5 PoE hat supports IEEE 802.3af/at standards, delivering both power and data through a single Ethernet cable. Simplify your setup and eliminate the need for an additional power adapter
• High-Speed NVMe SSD for Raspberry Pi 5: This Raspberry Pi 5 NVMe hat supports M.2 NVMe SSDs (2230/2242 sizes, M-Key / B+M Key), which enables ultra-fast PCIe storage expansion. Achieve real read/write speeds up to 800MB/s, ideal for data-intensive projects and AI applications

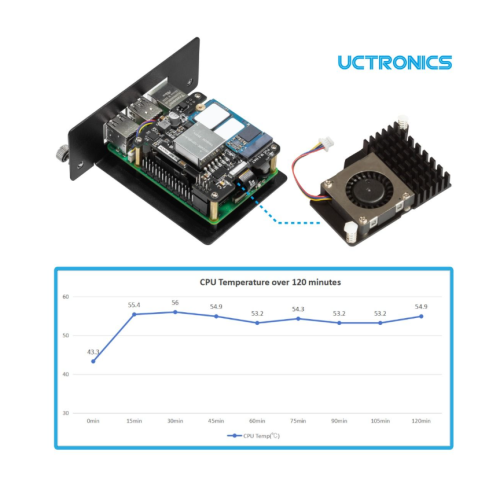

• Efficient Heat Dissipation: This UCTRONICS for Raspberry Pi 5 PoE+ hat is equipped with an Active Cooler that combines an aluminium heatsink with a PWM fan to ensure stable performance under heavy loads
• Compact layout and small size: This Raspberry Pi NVMe hat is suitable for most cases, also compatible with uctronics pi rack mount(U6123, U6195, U6264)

Specifications:

• Product Type: NVMe PoE+ HAT for Raspberry Pi 5
• Power Input: 37V–57V DC (PoE+)
• Power Output: 5V 5A (Max)
• Note: To achieve 5A, ensure IEEE 802.3at or higher PoE input device is used.
• Network Standard: IEEE 802.3af/at (PoE+)
• Reading/Writing Speed: Up to 800 MB/s
• M.2 Slot Type: NVMe, M-Key / B+M Key
• Supported SSD Sizes: 2230 / 2242
• Cooling: Active fan + efficient heat dissipation
• Dimensions: 66*56.5mm

Documentations:

• Manual
• Assembly Guide

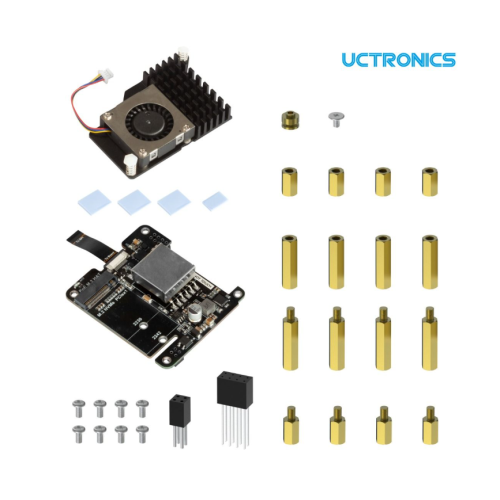

Package Includes:

• 1 x PoE+ M.2 NVMe HAT
• 1 x 30mm PCIe Cable

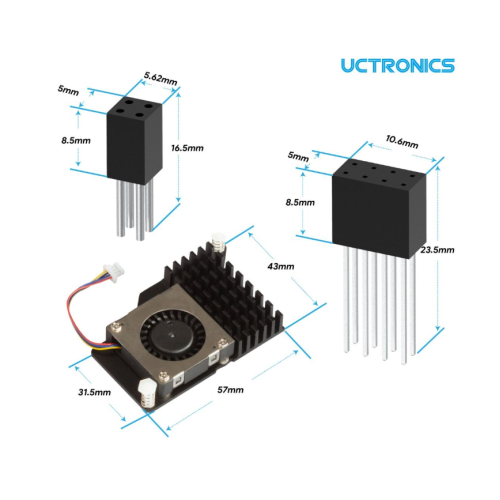

• 1 x Heatsink with Cooling Fan
• 1 x SSD Mounting Screw
• 1 x 2*2pin Connector Socket
• 1 x 2*4pin Connector Socket
• 1 x Screws Pack
