ArduCAM team just released a 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It’s capable of 3280 x 2464 pixel static images. It attaches to Pi by the dedicated standard CSi interface.

It is supplementary for Raspberry Pi official camera in order to fulfill the demands for different lens mounts, field of view (FOV) and depth of the field (DOF) as well as the motorized IR cut filter for both daylight and night vision.

You can check LK001 for various M12 lenses.

Specifications:

Camera

Image Sensor	IMX219
Still Resolution	8 Megapixels
Video Modes	1080p47, 1640 × 1232p41 and 640 × 480p206
Sensor Resolution	3280 × 2464 pixels
Sensor image area	3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size	1.12 µm x 1.12 µm
Optical Size	1/4"
IR Sensitivity	Integral IR-cut Filter, visible light only

Lens

FOCUS TYPE	MANUAL FOCUS
Focal Length	1.8mm
F.NO	F2.4
Field of View(FOV)	100°(H)
Lens Mount	M12 Mount

Electrical & Mechanical

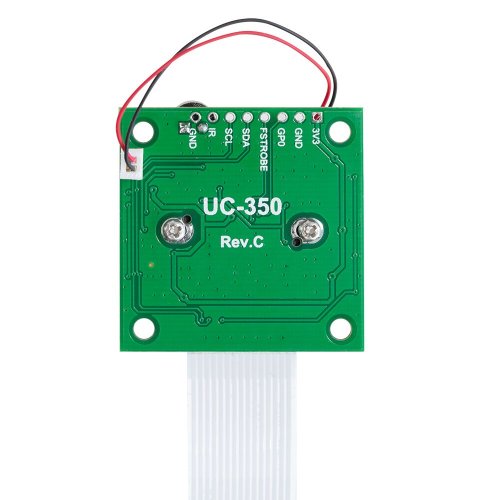

Camera Board size	36 x 36 mm
Peaking Current	300mA

Applications:

Cellular phones, PDAs, Toys
Other battery-powered products
Recording slow motion
Wildlife photograph
Home Security Supervise
Machine vision, etc.

Note:

The package does not include any Raspberry Pi motherboard.
The drop-in replacement module does not include FPC cables and any camera boards. And it requires the use of the Raspberry Pi V2 camera board to function properly.
The lenses of all camera modules are not interchangeable. Please contact sales in advance if you need to replace them.

Note for Supported Platforms and Os

PLATFORM	BOOKWORM(LIBCAMERA)	BULLSEYE(LIBCAMERA)	BUSTER(RASPISTILL)
Raspberry Pi 3/4/5	√	√
Raspberry Pi CM3/CM4	√	√	√

Documentations:

Package Includes:

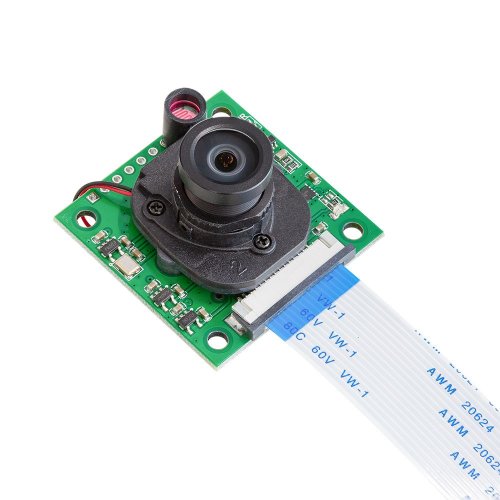

1 x 8 Megapixels IMX219 Sensor Camera Module with Motorized IR-cut lens

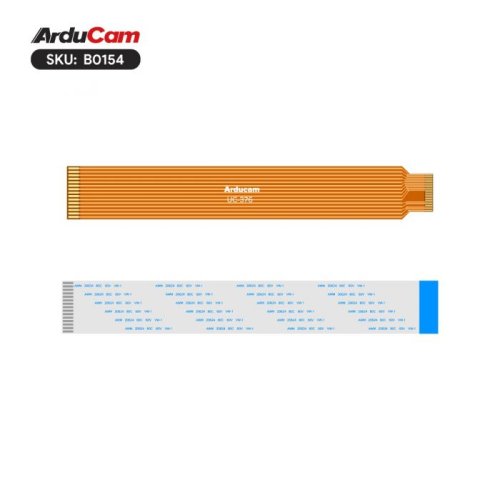

1 x 15cm 15pin FPC cable
1 x 15cm 15-22pin FPC cable

ArduCAM B0154 8MP Sony IMX219 camera module with Motorized IR cut filter M12 mount LS1820 Lens for Raspberry Pi 4/3B+/3

Brand: ArduCAM
Product Code:ArdC-B0154-NOIR-Cam-Module
Reward Points:62
Availability:In Stock

रo 4,307.00
रo 3,770.10
Ex Tax:रo 3,195.00
Price in reward points:6195
4 or more रo 4,289.30
7 or more रo 4,271.60
18 or more रo 4,253.90
36 or more रo 4,236.20

Qty

0 reviews / Write a review
