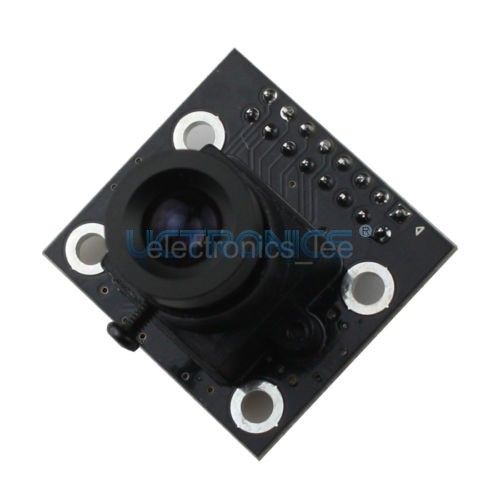

MT9V111 640x480 0.3 Mega pixels Camera compatible With OV7670
Features:
- Onboard LDO regulators for 2.8V
- Single 3.3V power input
- 2.54mm (0.1 inch) standard pin out
- SOC Camera Module
- Active array size: 640 x 480
- Optical Format 1/4 inch (4:3)
- Fast Rate: 30fps VGA, 60fps CIF, 90fps QVGA at 27MHz Clock
- Responsivity: 1.9V/lux-sec (550nm)
- Dynamic Range: 60dB
- ITU_R BT.656 (YCbCr), YUV, 565RGB, 555RGB, and 444RGB output data formats
- External 1/4 inch high quality 6mm/F2.0 M12x0.5 mount lens
Includes:
1 x MT9V111 640*480 0.3 Mega pixels Camera Module Compatible w/ OV7670
- Sensor Datasheet – Micron MT9V111
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
ArduCAM B0059 MT9V111 640x480 0.3 Mega pixels Camera compatible With OV7670
- Brand: ArduCAM
- Product Code:ArdC-MT9V111-0.3-MP-Cam
- Reward Points:8
- Availability:In Stock
- रo 861.40
-
रo 754.02
- Ex Tax:रo 639.00
- Price in reward points:760
-
- 35 or more रo 854.32
- 90 or more रo 850.78
- 180 or more रo 847.24
