The Arducam ezBOX GS B0633 is a color global shutter USB camera built for applications that require both high-speed performance and accurate color imaging. Capable of reaching up to 160 FPS at QQVGA resolution, it captures rapid events with minimal motion distortion, while the wide-angle optics provide broad scene coverage. Featuring an onboard ISP, UVC plug-and-play operation, external trigger input, and a durable metal housing, B0633 is well suited for robotics, automation, and visual inspection systems.

Applications:

• High-Speed Motion Analysis
• Machine Vision & Industrial Inspection
• Robotics & Automation
• Scientific & Laboratory Imaging
• Trigger-Based Image Acquisition Systems
• Embedded Vision & System Prototyping

Features:

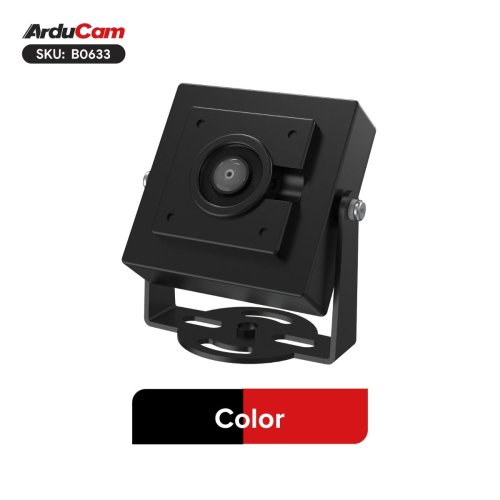

• [Global Shutter Color] Integrates a VGA color global shutter sensor, delivering accurate color reproduction while eliminating motion distortion in high-speed scenes.

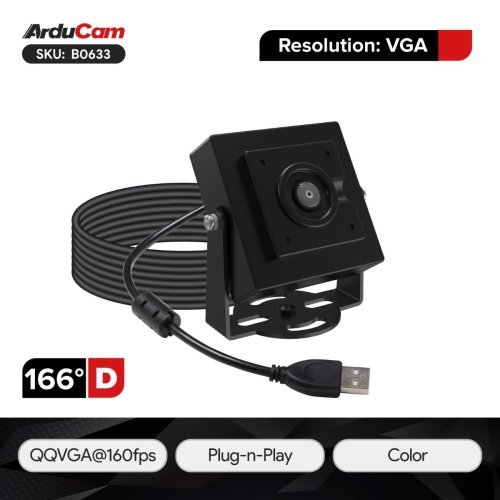

• [Ultra High FPS] Capable of capturing images at up to 160 FPS at QQVGA resolution, ideal for fast event recording, automation, and robotic vision applications.

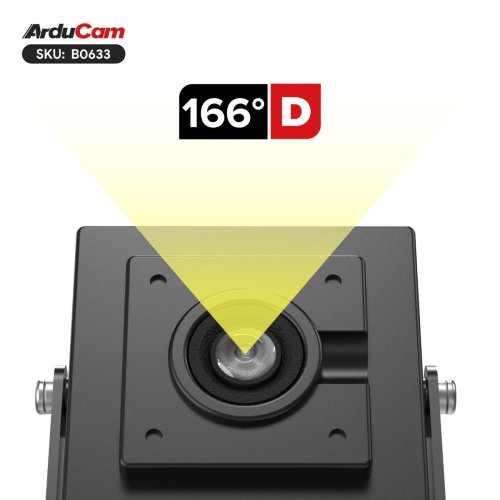

• [Wide Angle Optics] The wide-angle lens enables broader scene coverage, reducing blind spots and minimizing the need for multiple cameras.
• [Onboard ISP] Built-in ISP performs real-time color processing and image optimization, providing stable and consistent output without relying on host-side processing.

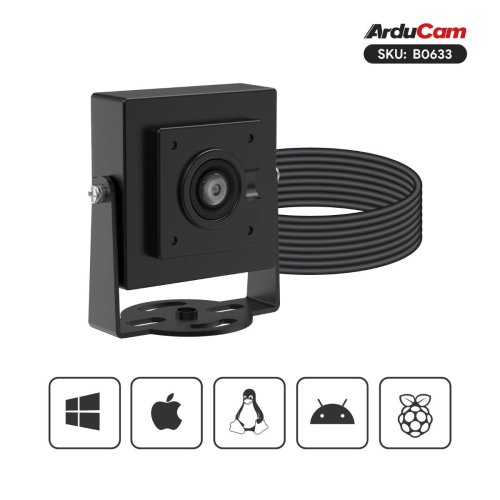

• [Plug & Play UVC] USB2 UVC compliance ensures seamless compatibility with mainstream operating systems and vision software, with no driver installation required.
• [Industrial Control] Housed in a durable metal enclosure and supporting external trigger input and ROI customization for synchronized and flexible image acquisition.

Specifications:

Notes:

• This module supports customized resolution, frame rate, and ROI.
• This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.

Documentations:

• Quick Start Guide

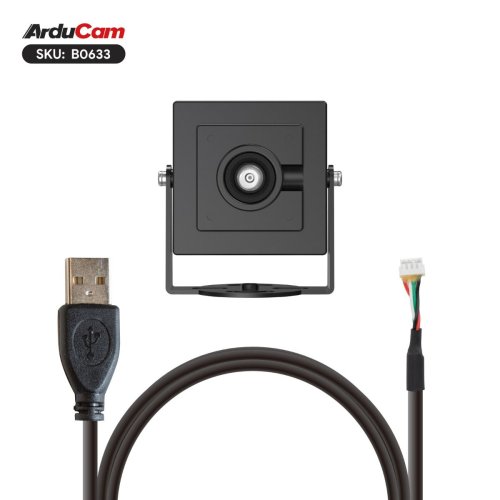

Package Includes:

• 1 x Arducam ezBOX VGA GS Color WA USB2 UVC Camera Module
• 1 x 1m USB2 to B4B-ZR JST Cable
