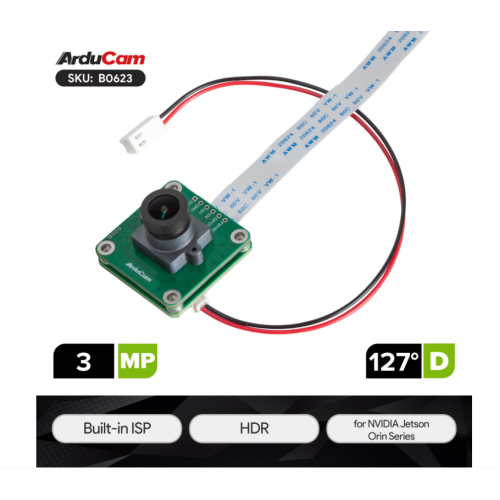

The Arducam 3MP ISX031 MIPI Camera brings Sony’s automotive-grade imaging performance to the NVIDIA Jetson Orin platform. Featuring a 120 dB high dynamic range, built-in ISP, and LED flicker mitigation, it delivers exceptional clarity in complex lighting—from bright sunlight to dim indoor scenes with LED illumination. With a wide-angle lens and native Jetson compatibility, it’s an ideal camera for AI vision, robotics, and outdoor perception systems demanding both stability and image fidelity.

• [Sony ISX031 Sensor with Built-in ISP] 3MP CMOS sensor delivering vivid, real-time image processing.
• [Exceptional 120 dB HDR] Captures every detail across extreme light and shadow.
• [LED Flicker Mitigation (LFM)] Eliminates flicker from LED or traffic lighting.
• [Wide-Angle Lens] Expansive field of view for robotics and embedded vision.
• [Jetson-Orin Ready] Native MIPI CSI-2 interface and driver support for Orin Nano/NX platforms.

Features:

• 120 dB High Dynamic Range (HDR) Powered by Sony’s ISX031, this camera achieves a remarkable 120 dB HDR, capturing fine details in scenes with strong contrast — from bright outdoor sunlight to shaded areas. Ideal for autonomous systems that must see clearly under rapidly changing light.

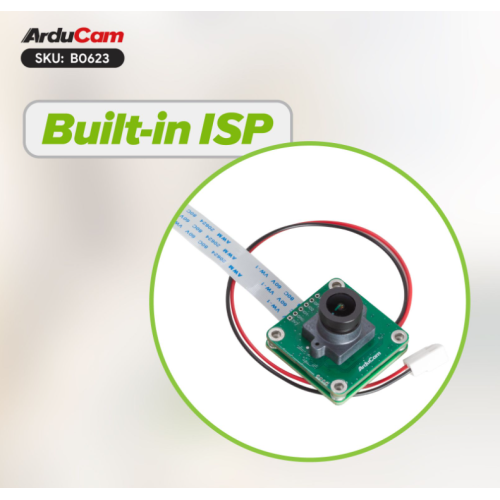

• Built-in Image Signal Processor (ISP) The integrated ISP handles real-time image optimization — including auto exposure, white balance, tone mapping, and noise reduction — reducing host workload and ensuring consistent image quality across applications.
• LED Flicker Mitigation (LFM) With advanced flicker suppression, the ISX031 ensures stable, artifact-free imaging under LED or strobe light sources common in industrial, traffic, and warehouse environments.

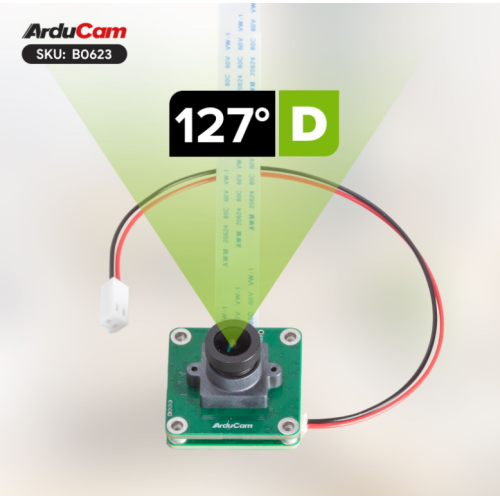

• Wide-Angle Lens for Expanded Coverage A factory-calibrated wide-angle lens provides a broad field of view, enabling greater spatial awareness and scene coverage for robotics, vehicles, or AI perception systems.

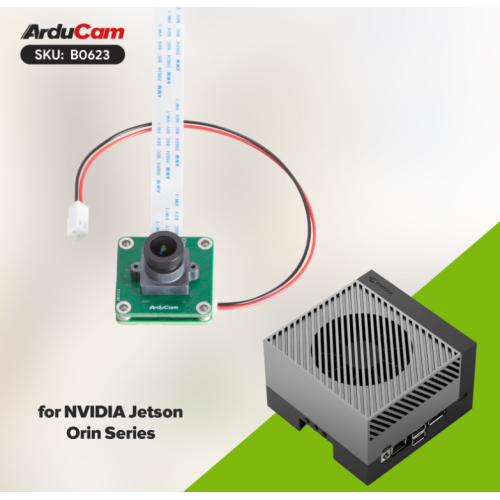

• Seamless Integration with Jetson Orin Nano/NX Optimized for NVIDIA Jetson Orin Nano and NX platforms through the MIPI CSI-2 interface, offering high data throughput, low latency, and full compatibility with NVIDIA’s vision frameworks.
