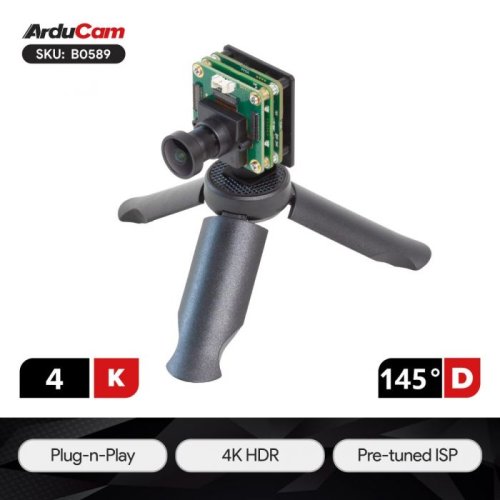

The Arducam 4K HDR USB3.0 UVC Camera combines ultra-high-definition 4K resolution with HDR imaging and a high 60FPS framerate for smooth, vibrant video capture. Featuring a pre-tuned onboard ISP, a wide-angle M12 lens with 145° field of view, and plug-and-play USB 3.0 connectivity, this camera is designed for quick and easy integration. Its customizable options, including framerate, lens types, and external triggers, make it ideal for diverse applications such as industrial inspection, robotics, and live streaming.

Features:

• Onboard ISP Features a pre-tuned Image Signal Processor on the camera board for fast, high-quality image processing without extra hardware.
• 4K HDR Delivers ultra-high-definition 3840x2160 resolution with HDR mode for clear, vibrant images in varied lighting.
• High Framerate Supports smooth 60FPS video at 1080p Full HD in both UYUV and MJPEG formats, ideal for real-time applications.
• Wide Angle Equipped with an M12 lens offering a 145° diagonal field of view to capture wide scenes easily.

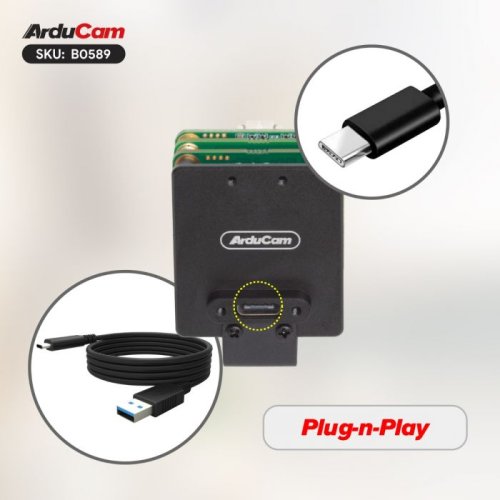

• Easy Use USB 3.0 UVC interface requires no drivers—just plug and play for quick setup.
• Custom Supported Offers customizable options like framerate, lens choices, external trigger, and flash strobe control for versatile use.

Specifications:

Applications:

• Drones: High-res aerial footage with smooth motion.
• Sports: Capture fast action in soccer, tennis, and more.
• Robotics: Vision for navigation and object detection.
• Industrial Inspection: Detailed quality control imaging.
• Live Streaming: Crisp video for events and webinars.
• Security: Wide-angle, clear surveillance footage.
• Scientific Research: High-quality data capture for experiments.

Documentations:

• Quick Start Guide

Package Includes:

• 1 x Arducam 4K HDR USB3 UVC Camera Module
• 1 x 1m USB3 Type-C cable
