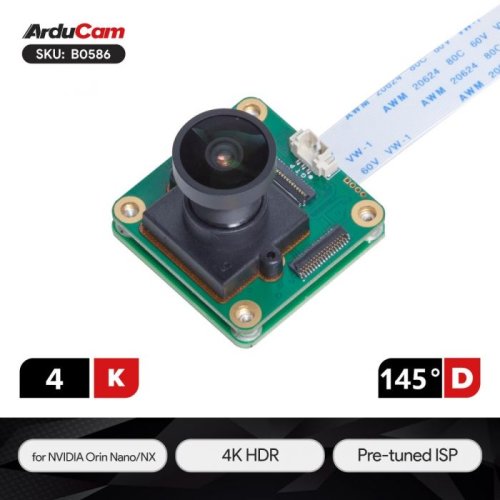

The Arducam 4K HDR MIPI Camera delivers ultra-high-definition 4K resolution with HDR and smooth 60FPS Full HD video, featuring a pre-tuned onboard ISP for optimized image processing. Designed specifically for NVIDIA Jetson Orin Nano and NX platforms, this camera includes a wide-angle 145° M12 lens and supports customizable options such as framerate, lens types, external triggers, and flash strobe control, making it ideal for advanced embedded vision applications.

Features:

• Onboard ISP Features a pre-tuned Image Signal Processor on the camera board for fast, high-quality image processing without extra hardware.
• 4K HDR Delivers ultra-high-definition 3840x2160 resolution with HDR mode for clear, vibrant images in varied lighting.
• High Framerate Supports smooth 60FPS video at 1080p Full HD in UYUV formats, ideal for real-time applications.

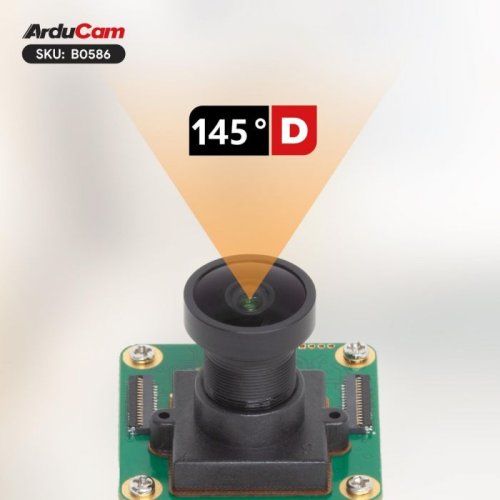

• Wide Angle Equipped with an M12 lens offering a 145° diagonal field of view to capture wide scenes easily.
• Custom Supported Offers customizable options like framerate, lens choices, external trigger, and flash strobe control for versatile use.

Specifications:

Applications:

• Drones: High-res aerial footage with smooth motion.
• Sports: Capture fast action in soccer, tennis, and more.
• Robotics: Vision for navigation and object detection.
• Industrial Inspection: Detailed quality control imaging.
• Live Streaming: Crisp video for events and webinars.
• Security: Wide-angle, clear surveillance footage.
• Scientific Research: High-quality data capture for experiments.

Documentations:

• Quick Start Guide

Package Includes:

• 1 x Arducam 4K HDR Camera Module for NVIDIA Orin Nano/NX
• 1 x 15cm 22-22pin FPC Cable
