The Arducam IMX415 MIPI Camera Module is a 8.3MP open-source camera designed for Raspberry Pi and embedded Linux systems, featuring Sony’s STARVIS sensor for excellent low-light performance and crisp 3840 x 2160 resolution. It comes with a pre-tuned M12 wide-angle lens and integrated 650nm IR filter, offering a ready-to-use solution for a wide range of vision applications. This variant is supported by upstreamed libcamera drivers, full hardware schematics, and 3D files for smooth integration and customization.

Features:

8.3MP Ultra HD Clarity

• Captures high-resolution images at 3840(H) × 2160(V) with a fine 1.45µm pixel size, delivering crisp, detailed visuals ideal for advanced imaging and machine vision tasks.

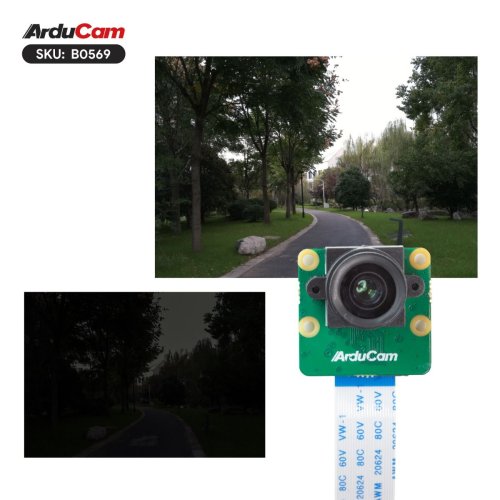

Excellent Low-Light Performance

• Powered by Sony’s high-sensitivity STARVIS IMX415 sensor with back-illuminated pixel technology, the camera performs exceptionally well in dim or low-light environments, ensuring clear imaging even in challenging lighting conditions.

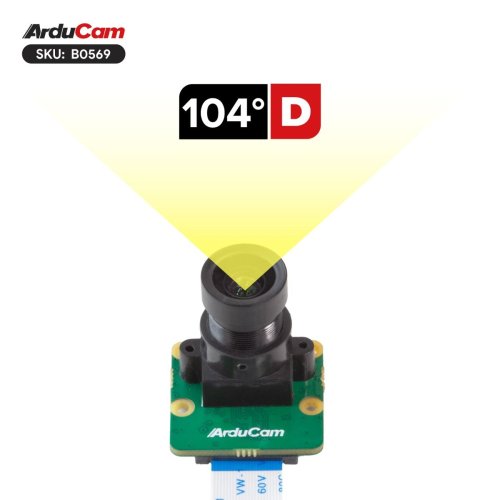

Optimized M12 Lens Selection

• Pre-tuned with a wide-angle M12 lens that’s carefully selected to match the sensor's performance. It includes a built-in 650nm IR cut filter for accurate daytime color reproduction.

Open-Source Friendly

• Designed for seamless integration with Raspberry Pi and embedded Linux systems, the module supports upstreamed libcamera drivers and provides full schematics, enabling customization and ease of development.

Robust Developer Ecosystem

• Backed by community-supported libcamera tuning, developers can fine-tune image quality and parameters to meet the unique requirements of their vision-based projects.

Specifications:

Applications:

• Industrial Inspection
• Smart Traffic Systems
• Surveillance & Security
• Agricultural Tech
• Embedded Vision Prototyping

Documentations:

• Quick Start Guide

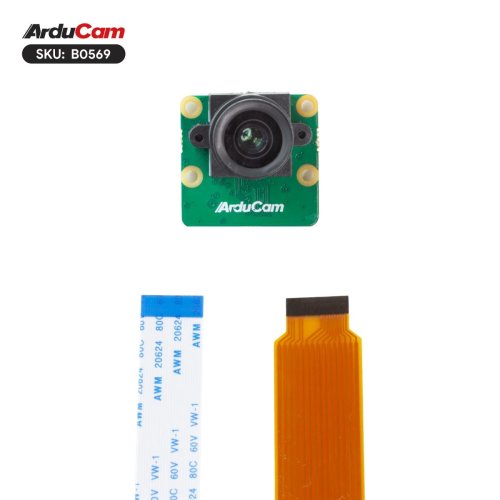

Package Includes:

• 1 x 4K IMX415 Ultra Low Light MIPI Camera Module

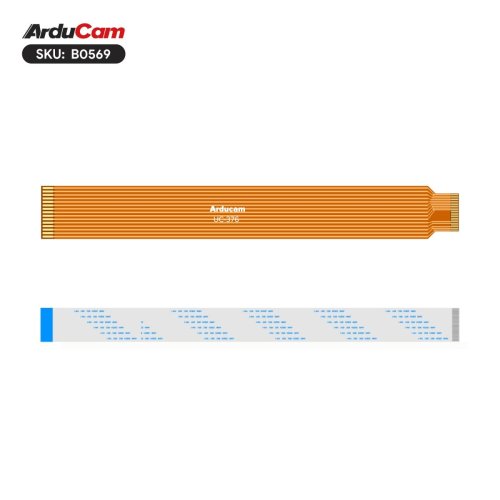

• 1 x 15cm 15pin-22pin Ribbon Cable
• 1 x 15cm 22pin-22pin Ribbon Cable
