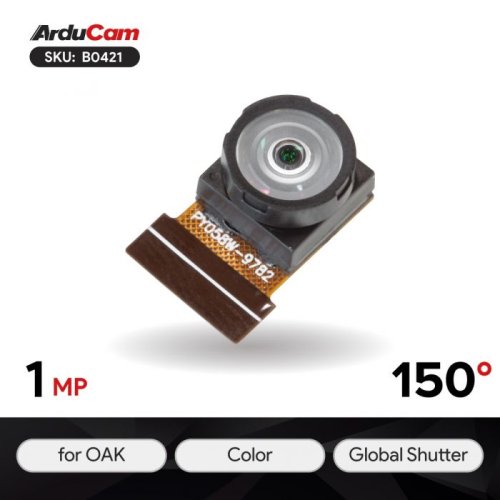

OmniVision’s OV9782 is a 1MP (1280×800) global shutter color image sensor. Arducam OV9782 camera module is a color camera option for OAK Series 2 Wide FOV cameras such as OAK-D W, OAK-D W PoE as the 150° DFOV color camera.

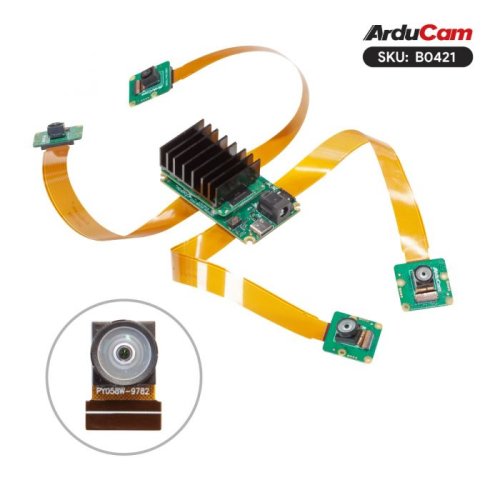

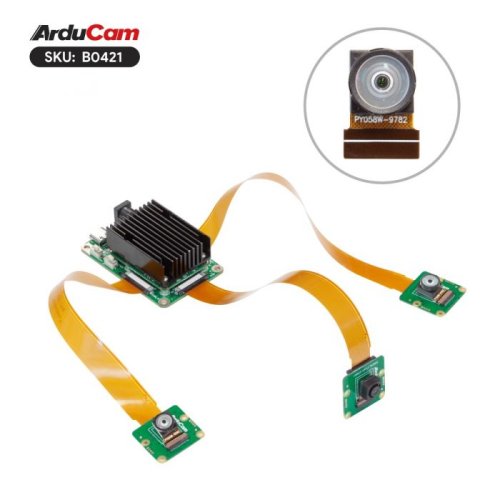

- It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
- High Frame Rate: up to 120fps
- Wide Angle: 150° (DFoV)
- Easy to use: compatible with OAK FFC boards for evaluation
Specification :
| Sensor | OV9782 |
| Optical Size | Type 1/4” |
| Pixel Size | 3μm×3μm |
| Shutter Type | Global Shutter |
| Color Filter Array | RGB |
| Max Sensor Resolution | 1280 x 800 |
| Resolution & Frame Rate | 1280×800@60fps, 1280×720@60fps, 640×400@120fps |
| Supported Platform | OAK-D W, OAK-D W PoE, OAK-FFC-3P, OAK-FFC-4P |
| Output | RAW8/RAW10 |
| Focus Type | Manual |
| Focus | 50cm~INF |
| Lens | f/2.0, EFL: 1.69mm, FoV: 150° (D) |
| IR Sensitivity | Built-in 650nm IR filter, sensitive to visible light only |
| Module Dimensions | 8.5mm x 14.67mm |
Documents :
Package Includes :
- 1 x Arducam B0421 OV9782 Global Shutter Color 1MP Wide Angle Camera Module for DepthAI OAK
Arducam B0421 OV9782 Global Shutter Color 1MP Wide Angle Camera Module for DepthAI OAK
- Brand: ArduCAM
- Product Code:NR-ArdC-OV9782-Global-Shutter-1MP-OAK
- Reward Points:33
- Availability:In Stock
- रo 3,770.10
-
रo 3,299.28
- Ex Tax:रo 2,796.00
- Price in reward points:3330
-
- 5 or more रo 3,758.30
- 10 or more रo 3,740.60
- 20 or more रo 3,722.90
- 40 or more रo 3,711.10
