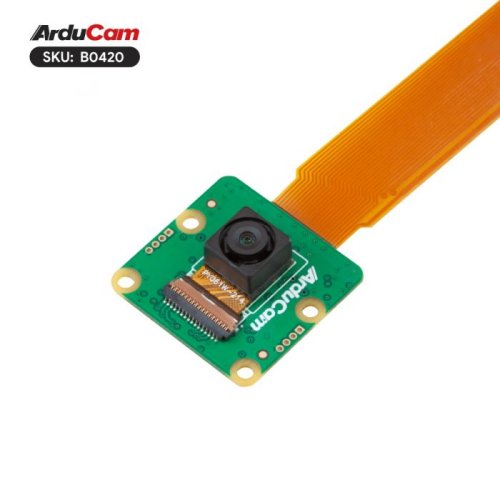

This Arducam IMX214 13MP high-resolution camera module is designed and released as the color camera in OAK Lite variants; OAK-D-Lite and OAK-1 Lite.

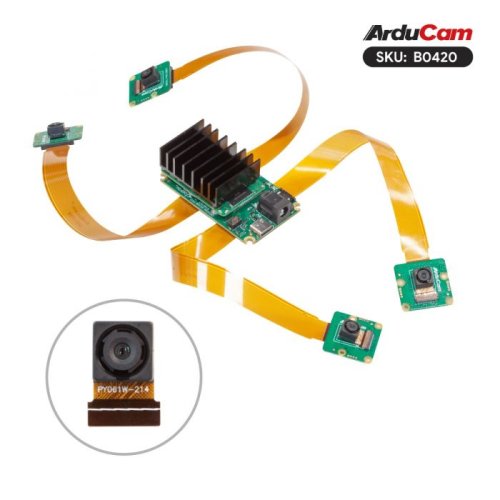

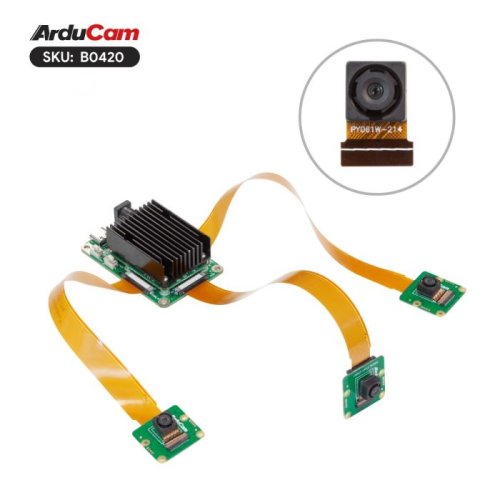

- It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.

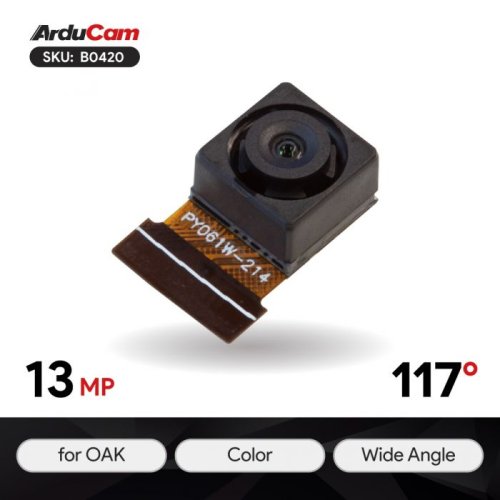

- High Resolution: 13MP
- Frame Rate: up to 35fps at Full HD
- Wide Angle: 117° (DFoV)
- Easy to use: compatible with OAK FFC boards for evaluation
Specification :
| Sensor | IMX214 |
| Optical Size | Type 1/3.06” |
| Pixel Size | 1.12μm×1.12μm |
| Shutter Type | Rolling Shutter |
| Color Filter Array | RGB Color |
| Max Sensor Resolution | 4208 x 3120 |
| Resolution & Frame Rate | 4208×3120@30fps, 4056×3040@30fps, 3840×2160@30fps, 1920×1080@35fps |
| Supported Platform | OAK-D-Lite, OAK-1 Lite, OAK-FFC-3P, OAK-FFC-4P |
| Focus Type | Manual |
| Focus | 50cm~INF |
| Lens | f/2.2, EFL: 2.262mm, FoV: 117° (D) |
| IR Sensitivity | Build-in 650nm IR filter, sensitive to visible light only |
| Module Dimensions | 8.5mm x 14.67mm |
Documents :
Package Includess :
- 1 x IMX214 Camera Module for DepthAI OAK
Arducam B0420 IMX214 13MP Wide Angle Camera Module for DepthAI OAK
- Brand: ArduCAM
- Product Code:NR-ArdC-IMX214-13MP-Camera-OAK
- Reward Points:19
- Availability:In Stock
- रo 2,153.50
-
रo 1,885.64
- Ex Tax:रo 1,598.00
- Price in reward points:1900
-
- 7 or more रo 2,147.60
- 15 or more रo 2,135.80
- 35 or more रo 2,129.90
- 70 or more रo 2,118.10
