Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

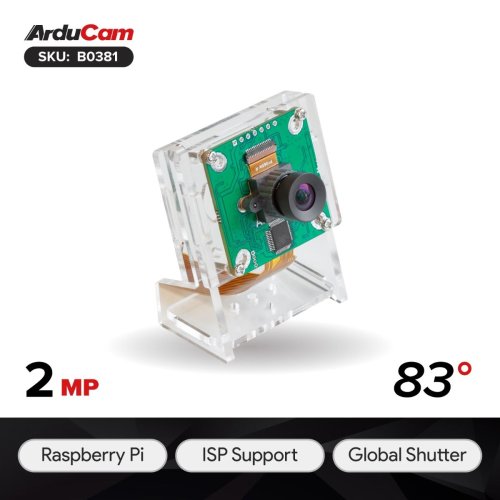

This B0381 is a new member of Arducam Pivariety series, which adopts a 1/2.9Inch 2MP  Global Shutter sensor OV2311, assembled with a Low distortion lens.

Features:

• Sensor
• Sensor: Global Shutter OV2311 Monochrome
• Pixel size: 3 µm x 3 µm
• Active array size: 1600 x 1300
• Optical Format size: 1/2.9 inch
• Support for sensor frame rate: 1600 x 1300@60fps, 1600x 1080@80fps, 1280 x 720@120fps
• Support for ISP frame rate: 1600 x 1300@30fps, 1600x 1080@30fps, 1280 x 720@60fps
• Input clock frequency: 6~27 MHz
• Max S/N ratio: 37.4 dB
• Dynamic range: 68 dB
• Lens
• Lens Thread: M12 x 0.5P
• Field of View(FoV): 83°(H)
• IR Sensitivity: without IR Filter, IR sensitive

Camera Module:

• Output interface: 2-lane MIPI
• Output formats: RAW 8/10 bit
• Minimum exposure time: 1 row period (11.3us at the resolution of 1600×1300 on Raspberry Pi)

Applications:

• Augmented and virtual reality
• Drones
• 3D imaging
• Machine vision
• Industrial bar code scanning
• Industrial automation

Documents:

• Datasheet

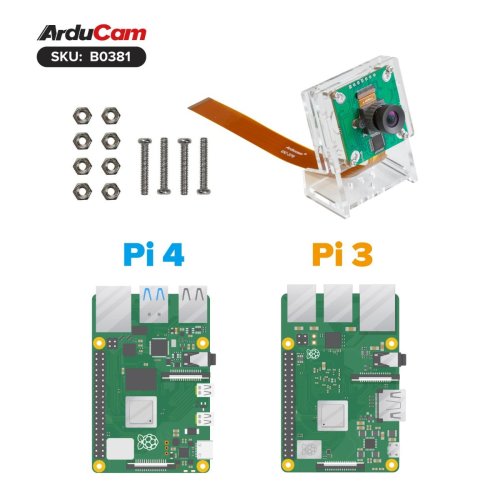

Package Includes:

• 1 x Arducam 2MP OV2311 ISP Camera Module
• 1 x 15cm 15-22pin Camera FPC Cable

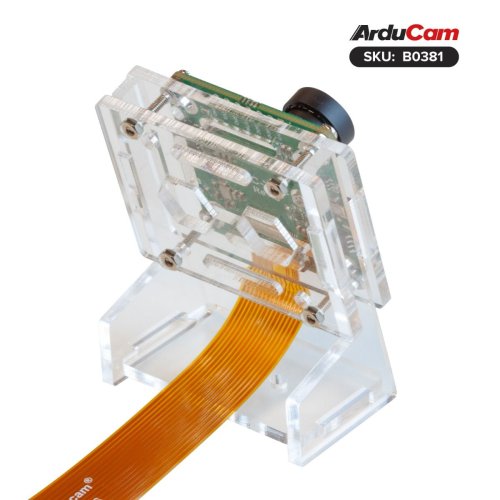

• 1 x acrylic case kit with assembly accessories
