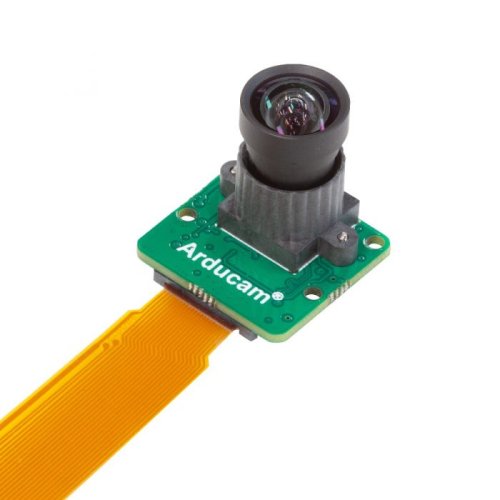

This Arducam 12MP IMX477 MINI High Quality Camera with M12 mount lens camera module is designed for DepthAI OAK DM1090FFC.
Specification :
Camera
- – Sensor: IMX477
- – Optical Format: 1/2.3″ (diagonal 7.857mm)
- – Resolution: 4056(H) x 3040(V) 12.3MP
- – Pixel Size: 1.55um x 1.55um
- – IR Sensitivity: Visible light
- – Interface: 4-lane MIPI CSI-2
- – Maximum image transfer rate: 4K@60 fps
- – Default Lens Mount: M12 Mount(SKU:LN053)
Lens
- – Format: 1/2.3 inch
- – Focal Length: 3.9mm
- – Aperture (F): F2.8
- – Field of View (FOV): 75° (H)
- – Mount: M12 Mount
- – Back Focal Length: 4.49mm
- – MOD: 0.1m Dimension: Φ14×18.67mm
- – Weight: 5g
Camera board
Package Includes :
- 1 x 12.3MP IMX477 color camera module for DepthAI OAK DM1090FFC
- 1 x 22pin-26pin camera cable

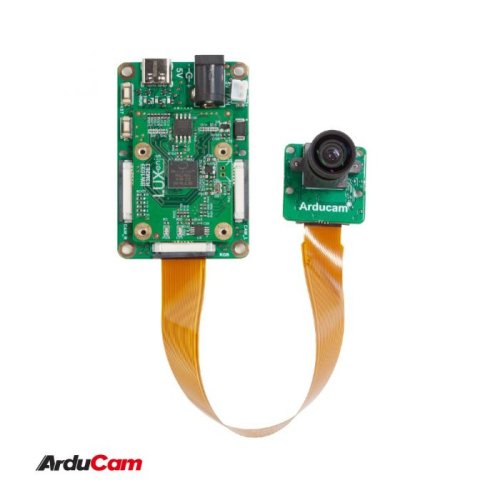

Arducam B0346 12MP IMX477 MINI High Quality Camera with M12 mount lens and adapter board for DepthAI(DM1090FFC)
- Brand: ArduCAM
- Product Code:NR-ArdC-12MP-IMX477-Camera-M12-DepthAI
- Reward Points:88
- Availability:In Stock
- रo 10,000.50
-
रo 8,750.88
- Ex Tax:रo 7,416.00
- Price in reward points:8830
-
- 2 or more रo 9,959.20
- 3 or more रo 9,917.90
- 8 or more रo 9,876.60
- 15 or more रo 9,835.30
