The 12MP IMX708 Autofocus Wide Angle Camera Module 3 NoIR for Raspberry Pi combines a high-performance 12-megapixel back-illuminated CMOS sensor with a wide 120° field of view autofocus lens to deliver exceptional image quality and coverage. Featuring rapid Phase Detection Autofocus (PDAF) and advanced High Dynamic Range (HDR) mode, this camera captures sharp, detailed images even in challenging lighting conditions. As a NoIR version without an infrared cut filter, it offers enhanced infrared sensitivity, making it ideal for night vision and low-light applications. Fully compatible with Raspberry Pi, this module is perfect for a wide range of creative and technical projects requiring versatile and high-quality imaging.

Features:

• High-Quality Image Sensor: Incorporates a back-illuminated and stacked 12-megapixel CMOS Sony IMX708 sensor, delivering excellent image quality with a high signal-to-noise ratio (SNR). This ensures crisp, clear images with enhanced sensitivity, especially in low-light conditions.
• Wide-Angle Autofocus Lens: Equipped with a 120° diagonal field of view (DFOV) autofocus lens, this camera module captures a broad scene, making it suitable for applications that require wide coverage without distortion.
• Enhanced HDR Mode: Supports High Dynamic Range (HDR) imaging with up to 3-megapixel output. HDR mode combines multiple exposures to produce photos with balanced lighting, preserving details in both bright and dark areas for more natural and vivid images.
• Fast and Accurate Autofocus: Features Phase Detection Autofocus (PDAF) technology, enabling rapid and precise focusing on subjects. This reduces motion blur and ensures sharp imagery even with moving objects.
• NoIR Version: This model is the NoIR variant, meaning it does not include an infrared cut filter. This allows the sensor to capture infrared light, making it ideal for night vision, infrared photography, and other applications where infrared sensitivity is beneficial.
• Raspberry Pi Compatibility: Designed specifically for easy integration with Raspberry Pi boards, making it a perfect choice for DIY projects, robotics, security cameras, and more.

Specifications:

Applications:

• Astrophotography
• Surveillance cameras
• FA cameras
• Industrial/Agricultural cameras
• Autonomous mobile robots, UGV/UAV, ADAS, etc.

Documentations:

• Quick Start Guide

Package Includes:

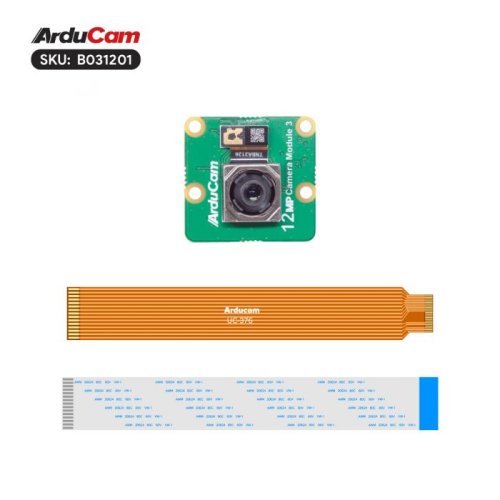

• 1 x IMX708 AF Wide-angle NoIR Camera Module
• 1 x 15cm 22-22pin FPC cable
• 1 x 15cm 15-22pin FPC cable
• 1 x Paper Quick Start Guide
