Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP, and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.

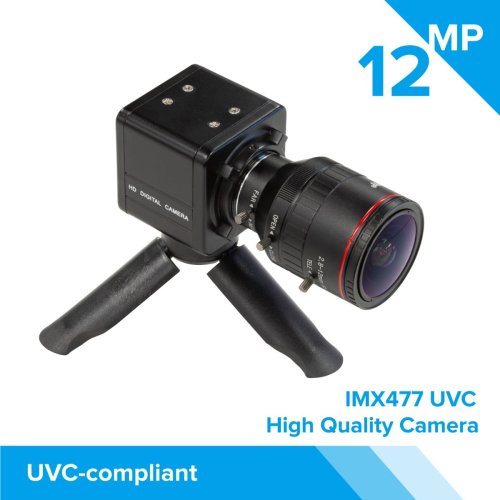

Arducam B0288 is a new member of Arducam’s USB camera family. It’s a 12MP, based on the 1/2.3″ Sony 12MP image sensor, UVC compliant, 2.8-12mm USB 2.0 camera with a metal shell.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Features & Specifications:
Camera
  • Optical Format: 1/2.3”
  • Resolution: 4032(H) x 3040(V) 12.3MP
  • Data Format: MJPG
  • Frame Rate: 4032×3040@10fps; 3840×2160@20fps; 2592×1944@30fps; 2560×1440@30fps; 1920×1080@60fps; 1600×1200@50fps; 1280×960@100fps; 1280×760@100fps; 640×480@80fps

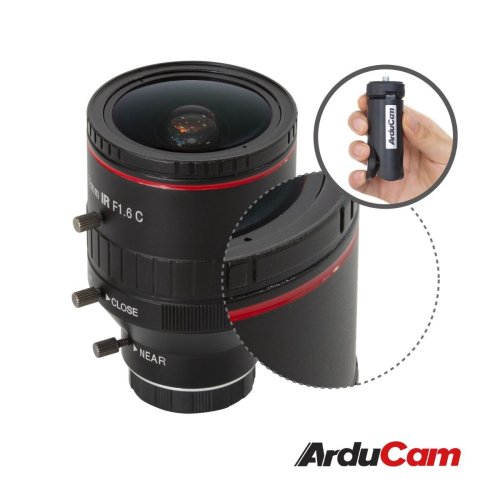

Lens
  • Field of View (FOV): 120°(H)-38°(H) on 1/2.3″ Camera
  • Lens Mount: C
  • Focal Length:2.8-12mm
  • Aperture: F1:1.6
  • MOD: 0.3m
  • Focus Type: Manual
Lens Options
CS-Mount Lens
SKU

LN051

LN050

LN038

LN039

LN040

LN041

LN029

Part No

CS17320M12

CS2316ZM02

CS2308ZM05

CS2008ZM05A

CS1812ZM03

CS2325ZM01

CS1806ZM06

Optical Format1/1.7″1/2.3'1/2.3''1/2.3''1/2.3''1/2.3''1/2.3''
EFL(mm)3.216.00 8.008.0012.0025.006.00
BFL(mm)5.947.536.507.537.538.038.03
F/NO2.01.2 1.41.21.61.21.4
HFOV on 1/2.3‘’ Cam120°24°50°50°30°14°65°
MOD0.3m0.20m 0.30m0.20m0.20m0.20m0.30m

Size(mm)

28×3030×2928×2330×29.530×2928×2928×28.5

NOTE 1: The CS-Mount Lens kit for the 12.3MP HQ Camera module, please check LK004, 5 lenses are included.

NOTE 2: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses in bulk.
Functionality and Compatibility
  • Auto-Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
  • System Compatibility: Windows, Linux, Mac, and Android with UVC
Power
  • Power Supply: USB-powered 5V
  • Working Current: MAX 200mA
Physical
  • Operating Temp.: -4°F~158°F (-20°C~+70°C).
  • Dimension: 50mmx50mmx120mm
  • Cable Length: default 6.56ft (2M)
Applications:
  • Video conference
  • Home video surveillance system
  • Live streaming
  • Record lessons and conference
Package Includes:
  • 1 × 12MP 2.8-12mm varifocal USB 2.0 camera with full metal shell

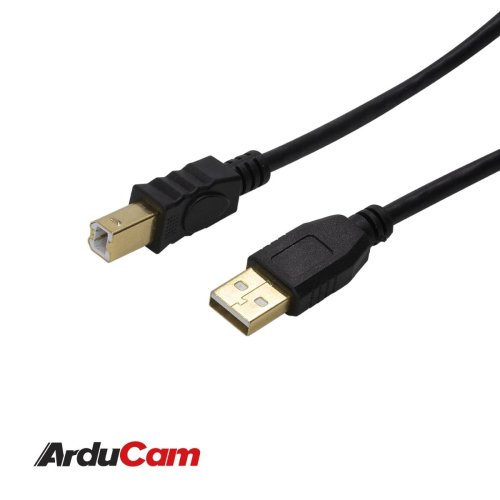

  • 1 × 6.56ft (2M) USB 2.0 cable
  • 1 x mini tripod stand

Sensor Specifications
Sensor type IM477
Sensor size 1/2.3”
Resolution 4032(H) x 3040(V) 12.3MP
Lens Specifications
Focal Length 2.8-12mm
Field of View 120°(H)-38°(H)
Lens Mount C
Aperture F1:1.6
Electrical Specifications
Input Voltage USB powered 5V
Minimum Operating Current MAX 200mA
Maximum Operating Temperature -4°F~158°F (-20°C~+70°C)
Physical Attributes
Dimensions 50mmx50mmx120mm
Additional Information
Warranty 90 days

Write a review

Please login or register to review

Arducam B0288 High Quality Complete USB Camera Bundle

  • Brand: ArduCAM
  • Product Code:ArdC-B0288-USB-Camera
  • Reward Points:203
  • Availability:In Stock
  • रo 23,083.16
  • रo 20,196.88

  • Ex Tax:रo 17,116.00
  • Price in reward points:20377

  • 3 or more रo 22,986.40
  • 7 or more रo 22,697.30
