In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.
Features:
- They Just Work - We’ve tested this lens, the camera cable and the tripod stand on the 12MP RPi HQ Camera. With them, you can get decent quality image and release your hands.
- The M12 Lens - 50 degree/ 75 degree HFOV (horizontal field of view), another cost-effective choice that adds up to your Raspberry Pi High Quality Camera Module.
- The Tripod Stand - Pocket size and lightweight, 1/4”-20 mounting screw, hassle-free fitting the RPi HQ Camera Board.
- The Camera Cable - 60cm/2ft length, 15 Pin 1.0mm Pitch interfaces, black color and long enough, goes well with 3D printers OctoPrint setup and Raspberry Pi High Quality Camera.
Specifications:
-
B0237:
- Model No: M2025ZM02
- Optical Format: 1/2.3"
- Focal Length: 25mm
- Aperture: F2
- Field of View (FOV): 20° (H)
- Mount: M12 mount
- Back Focal Length: 5.2mm
- MOD: 0.2m
- Dimension: Φ17×21mm
- Weight: 8g
-
B0236:
- Model No: M2306ZM13
- Optical Format: 1/2.3”
- Focal Length: 8mm
- Aperture: F2
- Field of View (FOV): 50° (H)
- Mount: M12 mount
- Back Focal Length: 7.56mm
- MOD: 0.3m
- Dimension: Φ16×16.41mm
- Weight: 6g
-
B0234:
- Model No: M23356H09
- Optical Format: 1/2.3”
- Focal Length: 3.56mm
- Aperture: F2.5
- Field of View (FOV): 90° (H)
- Mount: M12 mount
- Back Focal Length: 5.92mm
- MOD: 0.2m
- Dimension: Φ14×16.3mm
- Weight: 7g
-
B0276:
- Model No: M23390H08
- Optical Format: 1/2.3”
- Focal Length: 3.9mm
- Aperture: F2.8
- Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on
- Raspberry Pi V1/V2 Camera
- Mount: M12 mount
- Back Focal Length: 4.49mm
- MOD: 0.3m
- Dimension: Φ14×18.67mm
- Weight: 5g
-
B0269:
- Model No:M23272M14
- Optical Format: 1/2.3”
- Focal Length:2.72mm
- Aperture: F2.5
- Field of View (FOV): 140° (H)
- Mount: M12 mount
- Back Focal Length: 3.01mm
- MOD: 0.2m
- Dimension:Φ17.20×17mm
- Weight: 8g
Warranty: 90days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
-
B0236:
- 1 x 1/2.3″ M12 50 degree camera Lens

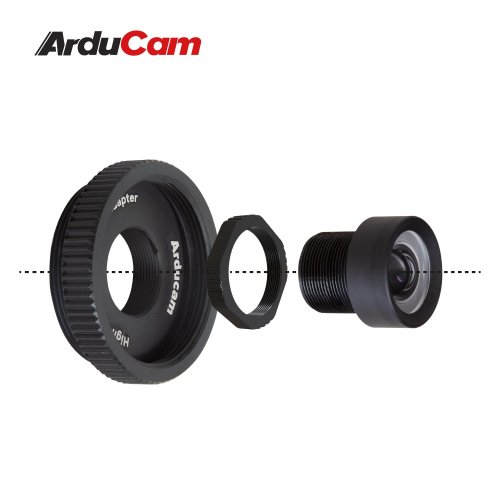

- 1 x M12 lens adapter
-

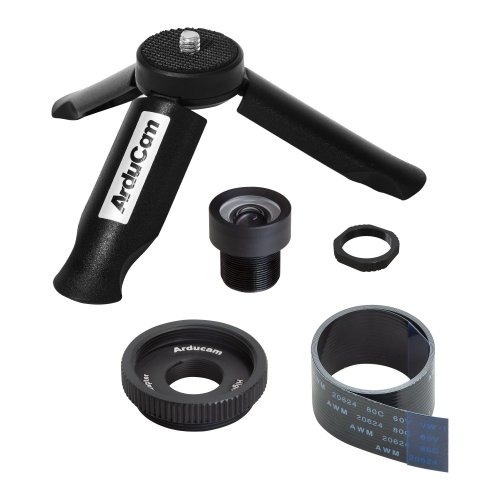

B0234 / B0237 / B0269 / B0276:
- 1 x 1/2.3" M12 Lens
- 1 x Tripod Stand
- 1 x 15pin 60cm/2ft Camera Cable
- 1 x M12 lens adapter
- 1 x M12 lens locking ring
| Sensor Specifications | |
| Sensor size | 1/2.3” |
| Lens Specifications | |
| Focal Length | B0236-8mm, B0276-3.9mm, B0237-25mm, B0234-3.56mm, B0269-2.72mm |
| Field of View | B0236-50° (H), B0276-75°(H), B0237-20°, B0234-90° (H), B0269-140° (H) |
| Lens Mount | M12 mount |
| Aperture | B0236/B0237-F2, B0276-F2.8, B0234/B0269-F2.5 |
| Physical Attributes | |
| Weight | B0236-6g, B0276-5g, B0237/B0269-8g, B0234-7g |
| Dimensions | B0236-16×16.41mm, B0276-14×18.67mm, B0237-17×21mm, B0234-14×16.3mm, B0269-17.20×17mm |
| Additional Information | |
| Warranty | 90 days |
Arducam B0236 / B0276 / B0237 / B0234 / B0269 M12 Lens Bundle for Raspberry Pi HQ Camera
- Brand: ArduCAM
- Product Code:ArdC-B236-276-M12-Lens
- Reward Points:17
- Availability:In Stock
- रo 1,923.40
-
रo 1,682.68
- Ex Tax:रo 1,426.00
- Price in reward points:1698
-
- 15 or more रo 1,908.06
- 40 or more रo 1,915.14
- 80 or more रo 1,891.54
