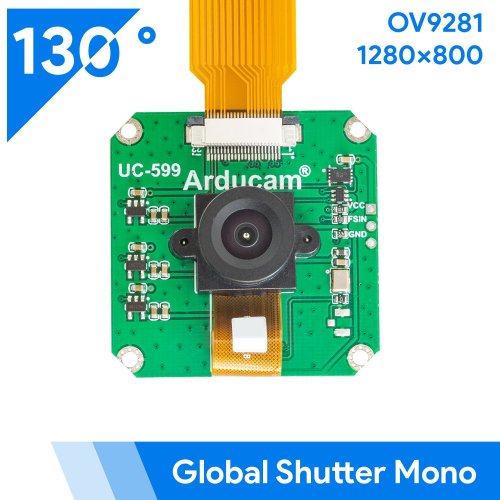

The Arducam monochrome (B&W) global shutter 1280×800 resolution OV9281 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi's CSI-2 camera interface without additional hardware.

This Arducam OV9281 global shutter camera (Rev.B) is compatible with the official V4L2 camera driver, and you can get it working easily just by enabling the overlay. The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection.

Specifications:

Sensor: Monochrome global shutter OV9281
Pixel Size: 3 μm x 3 μm
Active array size: 1280 x 800
Optical Size: 1/4 inch
Focusing Range: 30mm ~ infinite
Output interface: 2-lane MIPI serial output
Output formats: RAW
Maximum image transfer rate: 1280 x 800@120 fps with the Official driver/Arducam SDK.
Board Size: 40mm x 40mm
Lens Specs: FoV - 130°(D)/110°(H)/90°(V), EFL - 2.4mm, F2.0, 1/2.8"
IR Sensitivity: 850nm only pass filter / No IR Filter

Applications:

Security
High dynamic range imaging
Unattended surveillance
Stereo vision
Machine vision
Automation

Note:

Only the Rev.B version supports the official V4L2 driver. Please use Arducam MIPI camera driver for the first version.
The official V4L2 driver only supports RAW data and manual exposure.
This camera and RPI driver doesn’t support hardware JPEG/H.264 encoding.
Raspberry Pi motherboard is not included in the package.

Documents:

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Arducam B0224 OV9281 1MP Mono Global Shutter Camera Module
1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
1 x 80mm 22pin 0.5mm pitch FPC cable

Sensor Specifications
Sensor type	OV9281
Sensor size	1/4 inch
Pixel Size / Density	3 μm x 3 μm
Resolution	1280 x 800
Lens Specifications
Focusing Range	30mm ~ infinite
Focal Length	2.4mm
Field of View	130°(D)/110°(H)/90°(V)
Lens Mount	M12
Aperture	F2.0
Additional Information
Warranty	90 days

Arducam B0224 OV9281 1MP Mono Global Shutter Camera Module

Brand: ArduCAM
Product Code:ArdC-B0224-Camera
Reward Points:40
Availability:In Stock

रo 4,539.46
रo 3,971.88
Ex Tax:रo 3,366.00
Price in reward points:4007
5 or more रo 4,501.70
15 or more रo 4,520.58
35 or more रo 4,463.94

Available Options

Configuration

20) With no IR Cut

Qty

0 reviews / Write a review
