The B020101 / UB020201 is a new member of the Arducam’s USB camera family. Based on the 1/2.8” Sony IMX291 image sensor, it’s a 2MP, UVC compliant, ultra wide angle, low light, high speed USB 2.0 camera with metal case.
Specifications:
- Sensor: 1/2.8” IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB
- Minimum Illumination: 0.001Lux
Lens:
- Field of View (FOV)：D= 120° / 160°
- Lens Mount: M12
- Focusing Range: 6.56ft (2M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility:
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Dual microphones
- System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)
Power:
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical:
- Operating Temp.: -4°F~167°F (-20°C~+75°C).

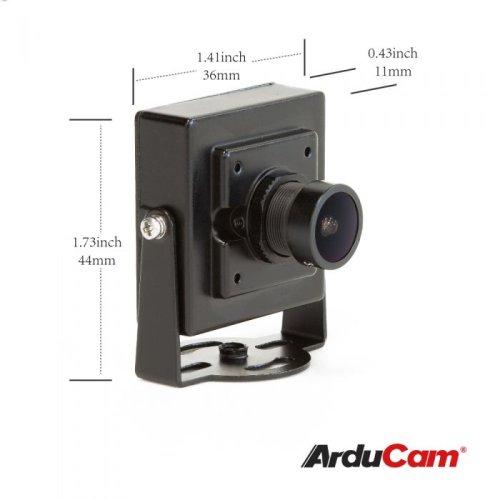

- Dimension: 39x42mm

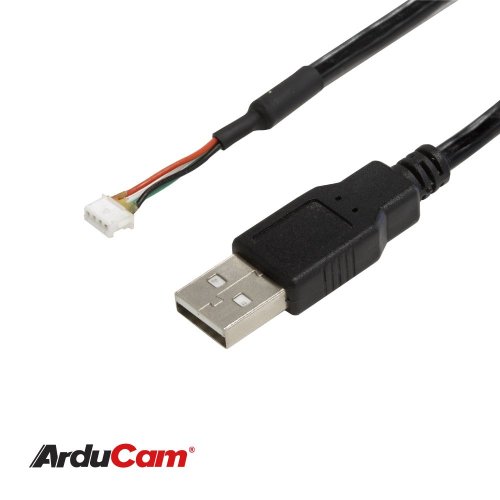

- Cable Length: 3.3ft (1M)
Documents:
Package Includes:
- 1 x Arducam B020101 (120 degree) / UB020201(160 degree) 1080P Low Light WDR USB Camera Module with Metal Case

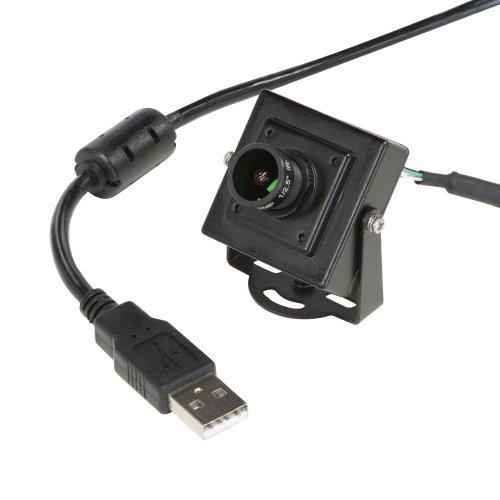

Arducam B020101 / UB020201 1080P Low Light WDR USB Camera Module with Metal Case
- Brand: ArduCAM
- Product Code:ArdC-B020101-UB020201
- Reward Points:57
- Availability:In Stock
- रo 6,386.16
-
रo 5,588.48
- Ex Tax:रo 4,736.00
- Price in reward points:5638
-
- 5 or more रo 6,333.06
- 15 or more रo 6,359.02
- 25 or more रo 6,279.96
