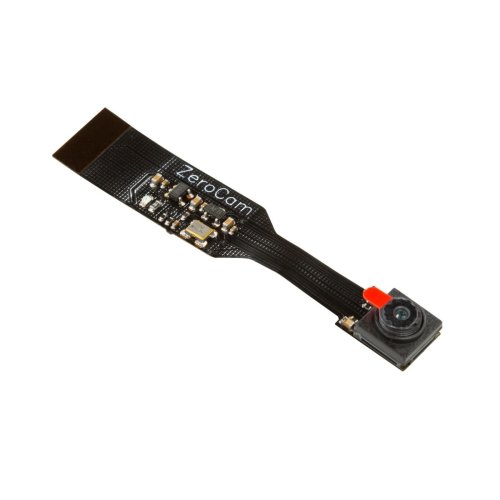

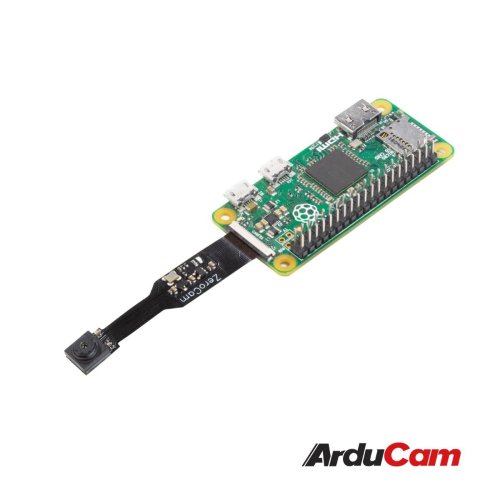

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.
This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30. 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi Zero by way of the small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
Features:
- Angle of View: 64 x 48 degrees
- Full-frame SLR lens equivalent: 35 mm
- Fixed Focus: 1 m to infinity
- Max frame rate: 30fps
- Size: 300 x 16 mm flex cable, neck wide is 6mm
Compatibility:
- Raspberry Pi Zero
- OS - Raspbian, MotionEyeOS, OctoPi, Ubuntu, Arch Linux
Documents:
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Spy Camera Module 1/4 Inch 5 Megapixel Module with flex cable for Raspberry Pi
| Sensor Specifications | |
| Sensor type | OV5647 |
| Sensor size | 1/4 Inch |
| Resolution | 5MP |
| Lens Specifications | |
| Focusing Range | 1 m to infinity |
| Angle of View | 64 x 48 degrees |
| Additional Information | |
| Warranty | 90 days |
Arducam B006603N for Raspberry Pi Zero Camera Module (NoIR)
- Brand: ArduCAM
- Product Code:ArdC-B006603N-Camera
- Reward Points:18
- Availability:In Stock
- रo 2,000.10
-
रo 1,749.94
- Ex Tax:रo 1,483.00
- Price in reward points:1765
-
- 15 or more रo 1,983.58
- 40 or more रo 1,991.84
- 75 or more रo 1,967.06
