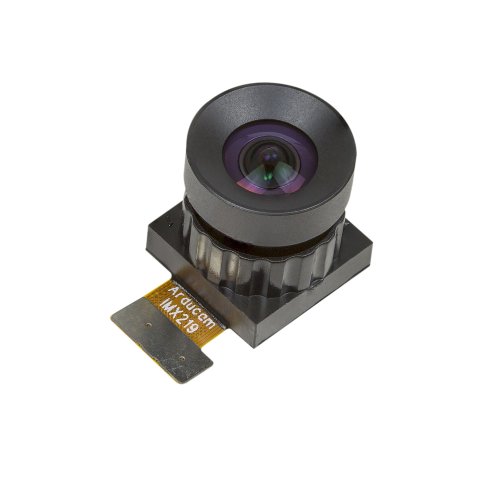

This Arducam IMX219 low distortion lens camera module is designed mainly for Raspberry Pi V2 camera board and replace the default standard IMX219 camera module to get a low distortion of view (<3%). It can be used for drone, robot, action camera and 3D scanning applications.
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@4K, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.8mm
- F.NO: 2.8
- View Angle: 75 Deg. (Horizontal)
- Interface: MIPI CSI-2 2-lane
- IR Sensitivity: Visible light, integral IR Filter
Arducam IMX219 Low Distortion IR Sensitive (NoIR) Camera Module:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.8mm
- F.NO: 2.8
- View Angle: 75 Deg. (Horizontal)
- Interface: MIPI CSI-2 2-lane
- IR Sensitivity: IR Sensitive, without IR Filter
Note:
- Raspberry Pi V2 camera board is needed to work with this camera module.
Additional Resources :
- Sensor Datasheet – Sony IMX219
- Arducam Documentation – Arducam Cameras for Raspberry Pi
- Arducam Documentation – Arducam Cameras for Jetson Nano
- Video – Arducam 8MP IMX219 Low Distortion Camera for Raspberry Pi (No Board)
- Video – Arducam 8MP IMX219 Low Distortion NVIDIA Camera
- Blog – Arducam 8MP IMX219 Low Distortion NVIDIA Camera
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
Package Includes:
- 1 x Arducam B0184/ B0188 IMX219 Low Distortion Camera Module for Raspberry Pi V2 Camera
Arducam B0184 / B0188 IMX219 Low Distortion Camera Module-drop-in replacement for Raspberry Pi V2 Camera and Jetson Nano Camera
- Brand: ArduCAM
- Product Code:ArdC-B0184-B0188-Cam
- Reward Points:14
- Availability:In Stock
- रo 1,539.90
-
रo 1,346.38
- Ex Tax:रo 1,141.00
- Price in reward points:1360
-
- 10 or more रo 1,534.00
- 20 or more रo 1,528.10
- 50 or more रo 1,522.20
- 100 or more रo 1,510.40
Available Options
