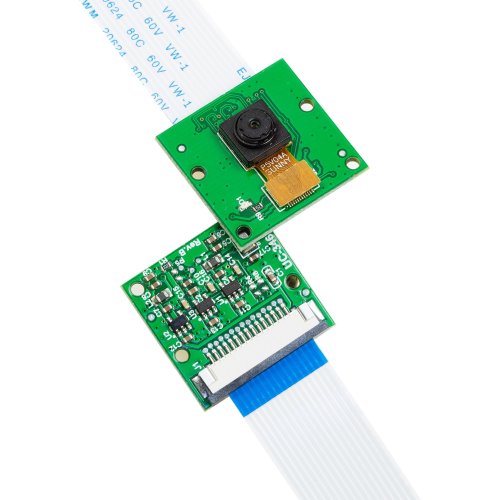

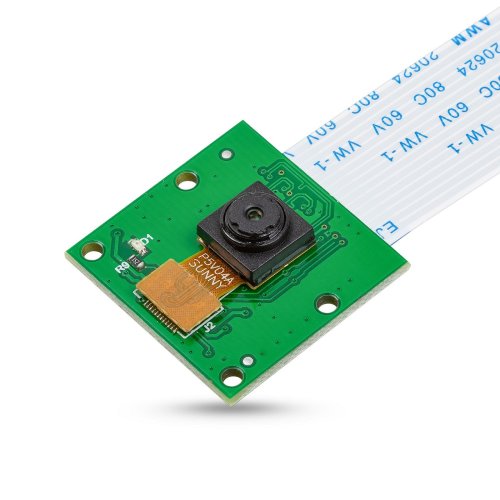

The board itself is tiny, at around 25mm x 24mm, which makes it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

B0033 :

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras.

Application :

Cellular phones,PDAs,Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms

Features :

Angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Max frame rate: 30fps
15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector

Additional Resources :

B003301 :

The NoIR version of Arducam B0033 mini camera module for Raspberry Pi

High-Definition video camera for Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
5MP camera natively compatible with the official Raspberry Pi camera modules and motherboards
No IR filter, sensitive to Infrared light. Serve as a night vision camera with external light sources like IR LED illuminators
Work on raspicam commands and python scripts as you would expect for a new project or drop-in replacement
Used on Raspbian, MotionEye, OctoPi for your 3D printer, surveillance camera or other Pi cam projects
Ribbon cable for Pi Zero(B0107+B0087) and 200cm/6.5ft extension cable(U3848) for projects like 3D printers are sold separately

Features :

Sensor: OV5647

Resolution: 5MP

Still Picture: 2592×1944 Max

Video: 1080P Max

Frame Rate: 30fps@1080P, 60fps@720P

IR sensitivity: NoIR filter, sensitive to IR

Focus Type: Fixed focus

Field of View: 54°×41° (Horizontal × Vertical)

Board Size: 25mm × 24mm

Connector: 15pin MIPI CSI

Additional Resources :

User Guide – Arducam 5MP NoIR OV5647 Standard Pi Camera

Package Includes :

1 x 5MP Mini Camera OV5647 Sensor 1080p 720p video for Raspberry Pi official Board
1 x 15cm 15pin FPC cable

Note: Raspberry Pi Type B Development Board is not included

ArduCAM B0033/B003301 5MP Mini Camera OV5647 Sensor 1080p 720p video for Raspberry Pi Board

Brand: ArduCAM
Product Code:ArdC-5MP-Mini-Cam-OV5647-Sensor
Reward Points:12
Availability:In Stock

रo 1,384.14
रo 1,211.86
Ex Tax:रo 1,027.00
Price in reward points:1222
20 or more रo 1,372.34
55 or more रo 1,367.62
111 or more रo 1,361.72

Available Options

Version

39) IR

40) NoIR

Qty

0 reviews / Write a review
