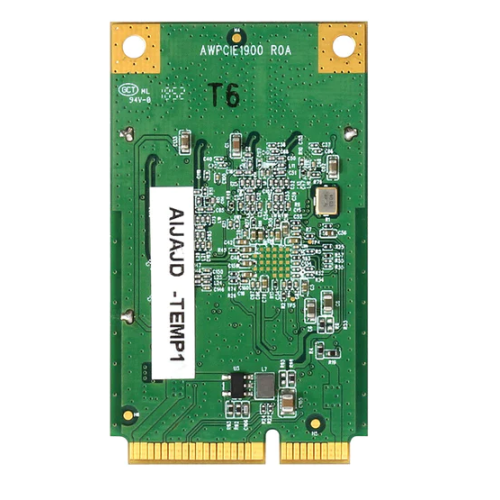

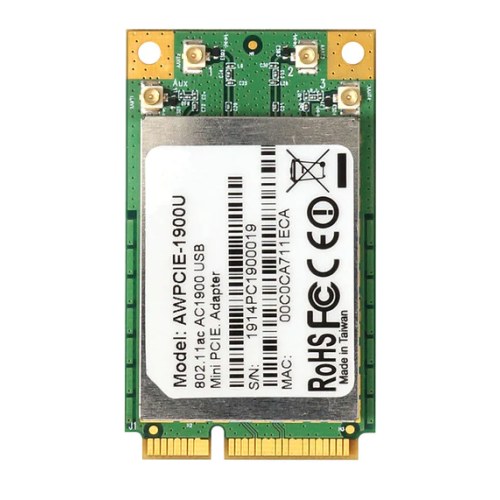

AWPCIE-1900U is a dual-band mini PCIe WiFi5 (802.11ac) card, utilizing high-performance Realtek RTL8814AU chipset

AWPCIE-1900U is based on highly integrated 4T4R, 3-streams MIMO Realtek RTL8814AU WiFi5 controller, with dual-band support and backward compatibility (802.11a/b/g/n).

Standard full-size Mini Card form factor with USB 3.0 (USB 2.0 compatible) interface and wide operating systems support (Microsoft Windows, MAC OS X, Linux kernel) make integration and deployment easy.

• Realtek RTL8814AU WiFi5 chipset

• Standard mini PCIe form factor
• 4×4 MIMO with 3 spacial streams and a maximum 24.5 dBm TX power
• USB 3.0 interface (with USB 2.0 compatibility)
• Integrated voltage converter (requires only 3.3 V supply)

Specifications:

• Parameter Value
• Chipset : Realtek RTL8814AU
• IEEE 802.11 standards : a/b/g/n/ac
• Frequency 2.4 GHz

                                    5 GHz

• Data rate 802.11n: 600 Mbps

                            802.11ac: 1300 Mbps

• Antenna connectors 4× IPEX/U.FL
• Interface USB 3.0

                            USB 2.0

• Operating systems Microsoft Windows

                                                 Linux

                                                 MAC OS X

• Power consumption: 1 A (typical)
• Form factor : full-size mini PCIe

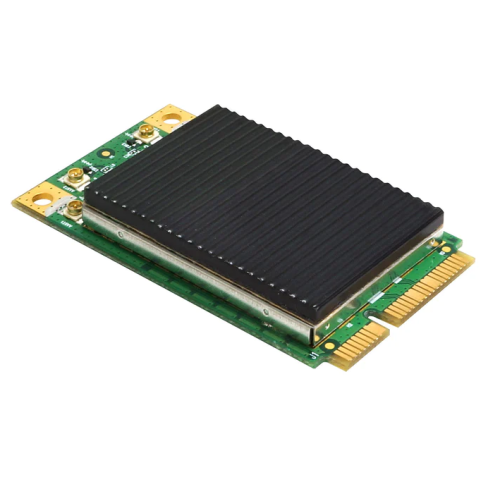

• Dimensions : 30 × 51 × 7 mm (with heatsink)

Package Includes:

• 1 x Alfa AWPCIE-1900U 802.11ac 4x4:3 MIMO dual-band mini PCIe card with USB 3.0 interface
