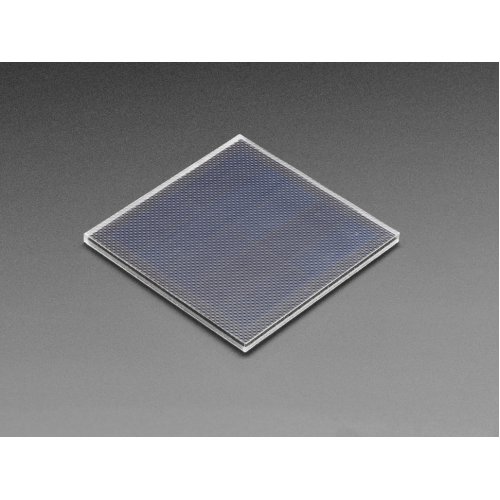

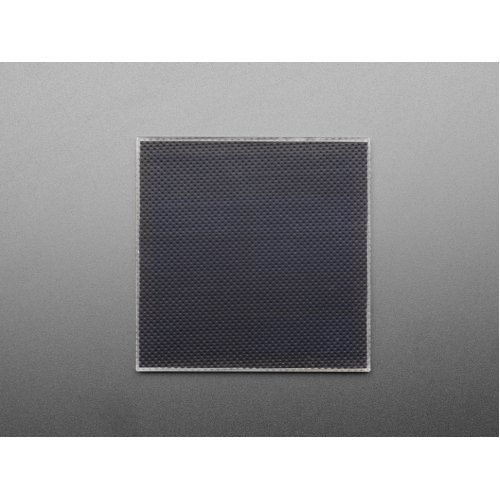

These panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV-resistant, and they use 10 high-efficiency monocrystalline SunPower cells with 22+% efficiency (praise the sun!). Each cell has a nominal voltage of 0.5V, so we call this a "5V" panel. Note the datasheet has it down as a 6V panel, because at max-power-point it will give you 6.1V

  • They output approximately 6V at 120 mA peak via two solder-able pads on the back. The panel is constructed with ETFE (Ethylene Tetrafluoroethylene), making it extremely durable and resistant to environmental elements, a superior upgrade to PET or laminate solar panel construction. They can easily stand up to typical outdoor use, including being dropped and leaned on.

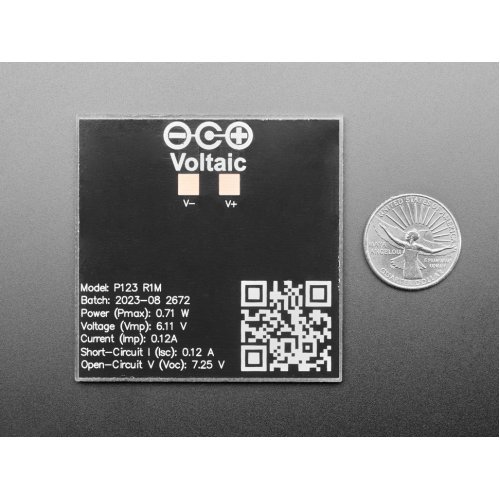

  • Unlike the larger panels, these don't come with a connector. Instead, there are two pads on the back. To connect, we recommend soldering two wires and attaching a 2.1mm terminal block. (Or you can cut off the alligator clips from a 2.1mm-to-clip adapter)
  • If you want to use this to charge a battery or run your project, check out our optimized Solar Lithium Ion/Polymer charger!


Specifications:

  • Features
    • Waterproof (IP67)
    • UV resistant (5-7 year life)
    • Durable and lightweight
    • High-efficiency monocrystalline cells: 22+%
    • 2x Solder Pads
  • Size and Weight
    • 65.5mm x 65.5mm x 3.1mm
    • 20.4 grams
  • Construction
    • Matte ETFE coating
    • 1.5mm double-sided PCB
  • Warranty
    • 2-year warranty on solar panels
    • For more warranty information, see the warranty guide

Documents:

Package Includes:

  • 1 x Adafruit 5856 5V 0.6W Mini Solar Panel - ETFE - Voltaic - P123

Write a review

Please login or register to review

Adafruit 5856 5V 0.6W Mini Solar Panel - ETFE - Voltaic - P123

  • Brand: Adafruit
  • Product Code:NR-Ada-5856-5V-0.6W-Solar-Panel
  • Reward Points:13
  • Availability:In Stock
  • रo 1,424.26

  • Ex Tax:रo 1,207.00
  • Price in reward points:1274

  • 110 or more रo 1,418.36
