Looking for a small compact board to power up your high current relays, solenoids or LEDs? Well, look no further this new 4 channel Mosfetti by Monk Makes board is just what you need for driving up to 2 Amps per channel (2.5A max total) and up to 16V DC power.

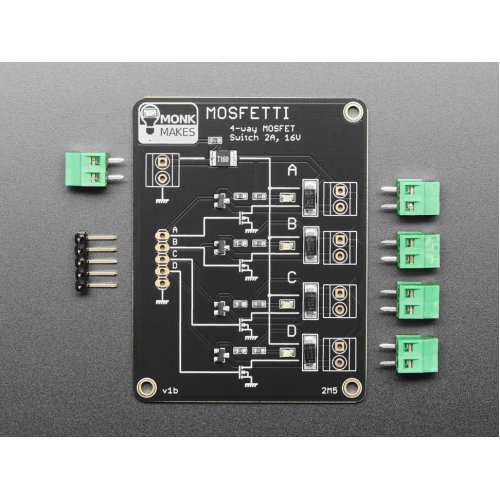

The Mosfetti is a 4 channel MOSFET switch designed for maker projects. It is supplied as a PCB with surface mount components attached and header pins and screw terminals as a kit for the customer to solder if desired. Designed for use with RVs, model railroads, strobe lights, irrigation pumps or anything else you may want to control with ease!
- Resettable ‘polyfuse’ to protect against over-current, 2.5A max total
- Power indicator LED
- LED indicator for each channel
- Low-side switching up to 2A per channel
- Flyback diode on each channel for inductive loads such as pumps, motors, relays or solenoids
Documentation:
Package Includes:
- 1 x Adafruit 5757 Mosfetti 4 Channel MOSFET Driver Board by Monk Makes
Adafruit 5757 Mosfetti 4 Channel MOSFET Driver Board by Monk Makes
- Brand: Adafruit
- Product Code:NR-Ada-5757-Mosfetti-4-Channel
- Reward Points:14
- Availability:In Stock
-
रo 1,581.20
- Ex Tax:रo 1,340.00
- Price in reward points:1415
-
- 100 or more रo 1,575.30
