- Note that this board isn't good for high power driving, like solenoids or motors or long analog LED strips. You can get about 40mA out max. But definitely easier than getting a separate 12V supply when just a small amount of current is needed and you've already got 3.3 or 5V on the board.

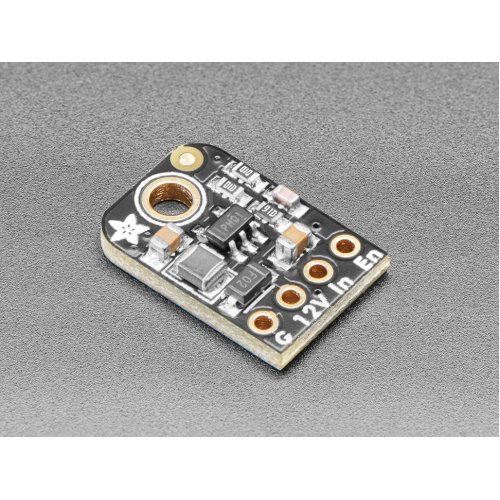

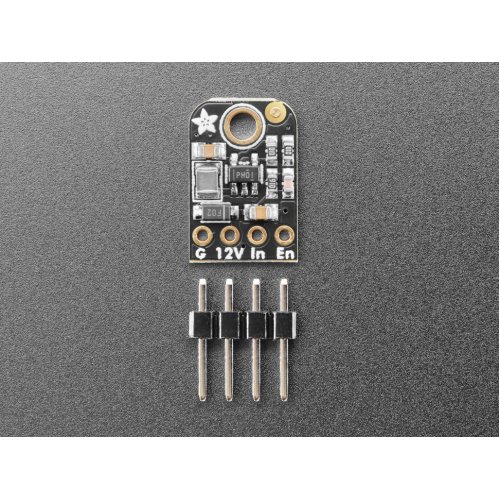

- You get one fully assembled breakout with a TPS61040 and required passive components, and a small bit of header. Give 2 to 6V DC on the IN and Ground pins. Then you'll have 12V on the 12V output pin. The Enable pin can be pulled low to disable the output.
- 1.8-V to 6-V Input Voltage Range
- Fixed Output Voltage 12V
- 400-mA (TPS61040) Internal Switch Current
- Up to 1-MHz Switching Frequency
- 28-μA Typical No-Load Quiescent Current
- 1-μA Typical Shutdown Current
- Internal Soft Start

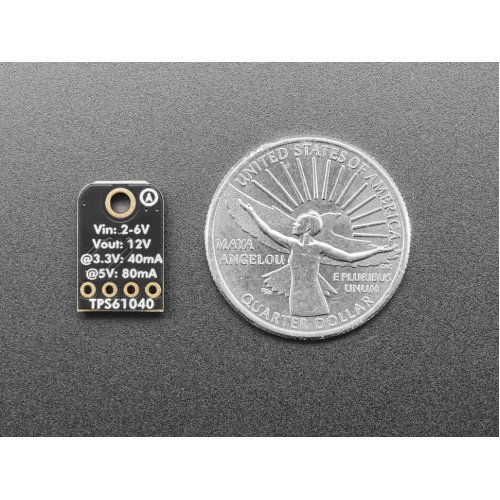

- Product Dimensions: 15.2mm x 10.0mm x 2.9mm / 0.6" x 0.4" x 0.1"
- 1 x Adafruit 5644 12V Bias Voltage Boost Converter - TPS61040
Adafruit 5644 12V Bias Voltage Boost Converter - TPS61040
- Brand: Adafruit
- Product Code:NR-Ada-5644-12V
- Reward Points:3
- Availability:In Stock
-
रo 375.24
- Ex Tax:रo 318.00
- Price in reward points:336
-
- 45 or more रo 329.22
- 483 or more रo 328.04
