The Feather M4 Express, gets a glow-up here with an upgrade to the SAME51 chipset which has built-in CAN bus support! Like its SAMD51 cousin, the ATSAME51J19 comes with a 120MHz Cortex M4 with floating point support and 512KB Flash and 192KB RAM.

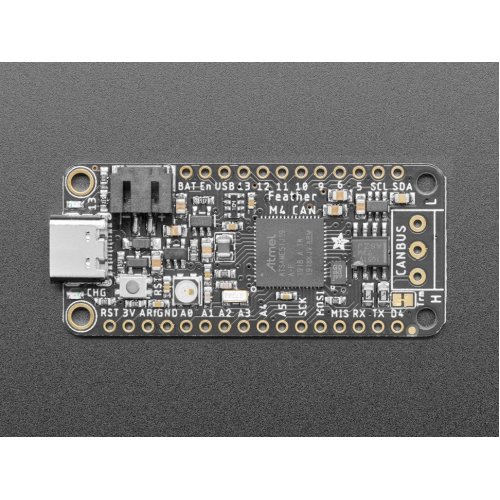

At the end of the board we have placed a CAN transceiver chip as well as a 5V converter to generate 5V power to the transceiver even when running on battery. The two CAN signal lines and ground reference signal are available on a 3-pin 3.5mm terminal block. The chip and booster can be put to sleep for power saving. The built in CAN can read or write packets and has support in both Arduino and CircuitPython.

The Feather M4 Can Express also comes with a Mini NeoPixel and 2 MB SPI Flash storage. You can use the SPI Flash storage like a very tiny hard drive. When used in CircuitPython, the 2 MB flash acts as storage for all your scripts, libraries and files. When used in Arduino, you can read/write files to it, like a little datalogger or SD card, and then with our helper program, access the files over USB.

Features:

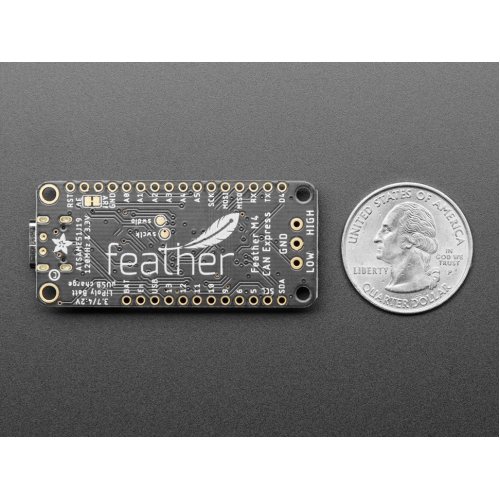

Measures 2.0" x 0.9" x 0.28" (50.8mm x 22.8mm x 7mm) without headers soldered in
Light as afeather - 5 grams
ATSAME51 32-bit Cortex M4 core running at 120 MHz, 32-bit, 3.3V logic and power
Hardware CAN bus support with built-in transceiver, 5V booster and terminal connection.
Floating point support with Cortex M4 DSP instructions
512 KB flash, 192 KB RAM
2 MB SPI FLASH chip for storing files and CircuitPython code storage.
No EEPROM
32.768 KHz crystal for clock generation & RTC
3.3V regulator with 500mA peak current output
USB Type C connector for USB native support, comes with USB bootloader and serial port debugging
Built in crypto engines with AES (256 bit), true RNG, Pubkey controller
Tons of GPIO! 21 x GPIO pins with following capabilities:
- Dual 1 MSPS 12 bit true analog DAC (A0 and A1) - can be used to play 12-bit stereo audio clips
- Dual 1 MSPS 12 bit ADC (6 analog pins some on ADC1 and some on ADC2)
- 6 x hardware SERCOM - Native hardware SPI, I2C and Serial all available
- 16 x PWM outputs - for servos, LEDs, etc
- I2S input and output
- 8-bit Parallel capture controller (for camera/video in)
Built in 100mA lipoly charger with charging status indicator LED
Pin #13 red LED for general purpose blinking
Power/enable pin
4 mounting holes
Reset button

Package Includes:

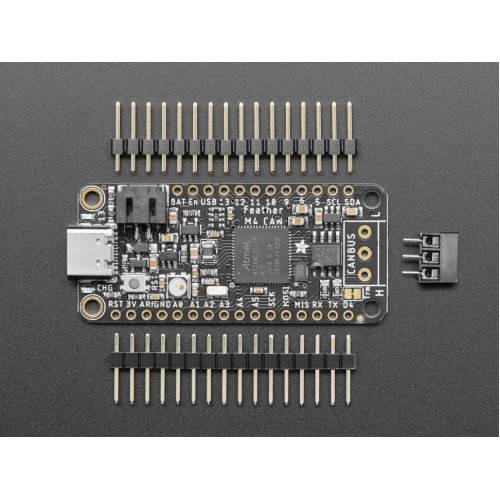

1 x Adafruit Feather M4 CAN Express with ATSAME51

Adafruit 4759 Feather M4 CAN Express with ATSAME51

Brand: Adafruit
Product Code:Ada-4759-Feather-M4-CAN
Reward Points:28
Availability:In Stock

रo 3,177.74
रo 2,815.48
Ex Tax:रo 2,386.00
Price in reward points:2841
50 or more रo 2,781.26
60 or more रo 2,769.46

Qty

0 reviews / Write a review
