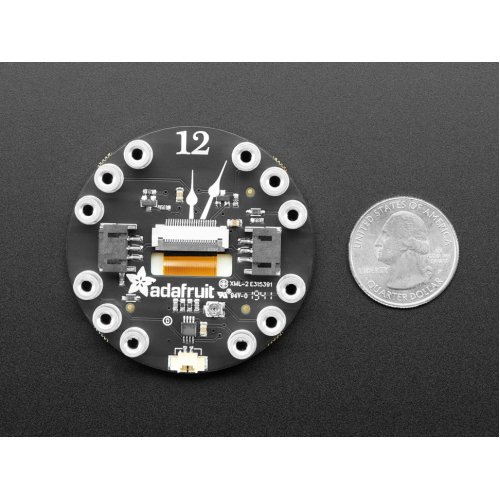

Extend and expand your Circuit Playground projects with a bolt on TFT Gizmo that lets you add a lovely color display in a sturdy and reliable fashion. This PCB looks just like a round TFT breakout but has permanently affixed M3 standoffs that act as mechanical and electrical connections.

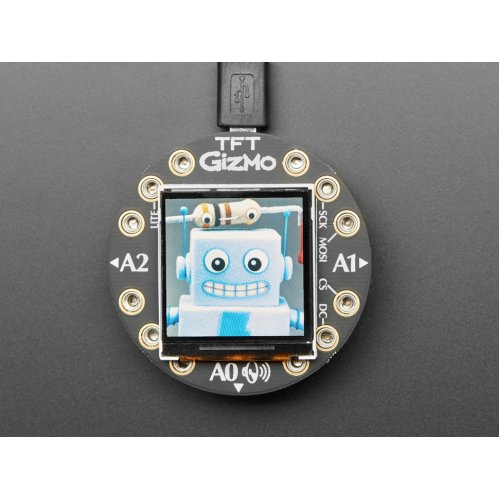

• Once attached you'll get a 1.54" 240x240 IPS display with backlight control, two 3-pin STEMMA connectors for attaching NeoPixel strips or servos, and a Class D audio amplifier with a Molex PicoBlade connector that can plug one of our lil speakers.
• This is a great companion for our Circuit Playground Express or Bluefruit boards thanks to their fast SPI hardware speeds, and works in Arduino and CircuitPython. If you're using this with Circuit Playground Express and CircuitPython, you won't be able to do a lot because there isn't a ton of memory - mostly just displaying the REPL and maybe running an image slideshow. For CircuitPython use, the Bluefruit is recommended and works really great!
• You can use it with the Circuit Playground Classic in Arduino but it won't be very fast, as you have to bitbang the SPI - and the display has a lot of pixels - so it's not recommended. You'll have a very slow display.

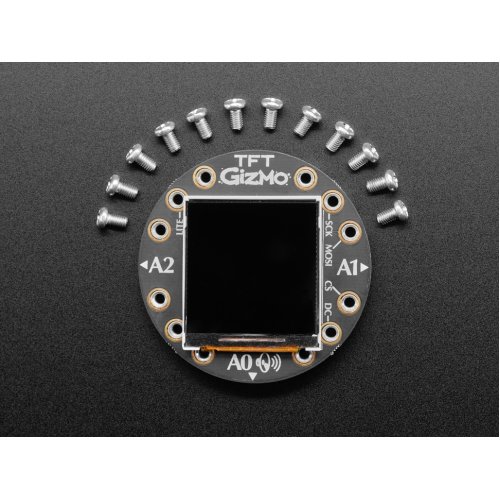

• Comes with a PCB that has pre-soldered standoffs attached, and 12x M3 screws for attachment. Fits all Circuit Playgrounds but like we mentioned earlier, the Express and Bluefruit are recommended.

Documentation:

• Guide

Technical Details

• Revision History:

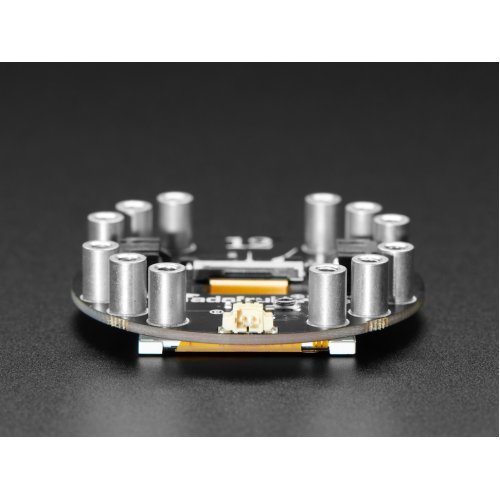

• As of Oct 30, 2019 - we are now shipping wtih 8mm standoffs instead of 6mm! This lets you put a lipoly battery in between the Circuit Playground and Gizmo!

Product Dimensions: 53.3mm x 53.3mm x 9.4mm / 2.1" x 2.1" x 0.4"
