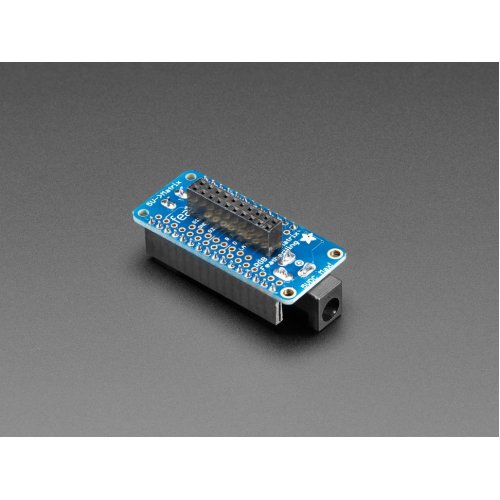

Adafruit 3036 RGB Matrix Featherwing Kit - For M0 and M4 Feathers can be assembled in one of two ways. You can either solder in a 2x8 IDC shrouded header on the top, then plug in the IDC cable that came with your matrix. This makes it easy to stack on top of your Feather. Or, you can solder in the 2x10 socket header on the bottom of the Wing, and then stack your Feather on top. That way you can plug it directly into the back of the matrix.

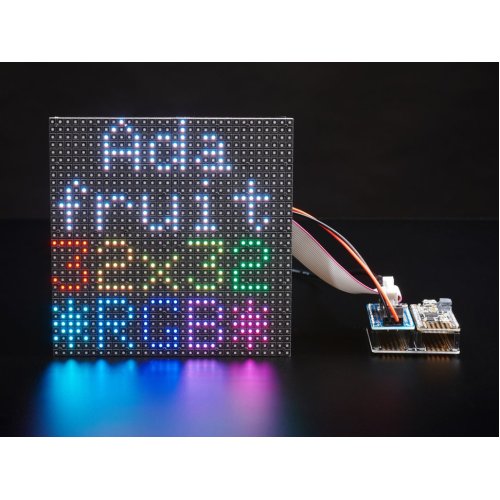

This FeatherWing will work great with any of our 16x32, 32x32 or 64x32 RGB matrices, and is definitely the easiest way to glow and go.
Either way you decide to go, you can plug a 5V DC power pack into the 2.1mm DC jack. That 5V is polarity protected and then output on the other side to a 5.08mm terminal block. An onboard regulator will provide 3.3V power to your Feather so you don't need a separate USB or battery, this makes for a very compact build!
Please note: This wing is only tested/designed to work with the SAMD21 M0 and SAMD51 M4 Feathers. It's not for use with any other Feathers at this time.

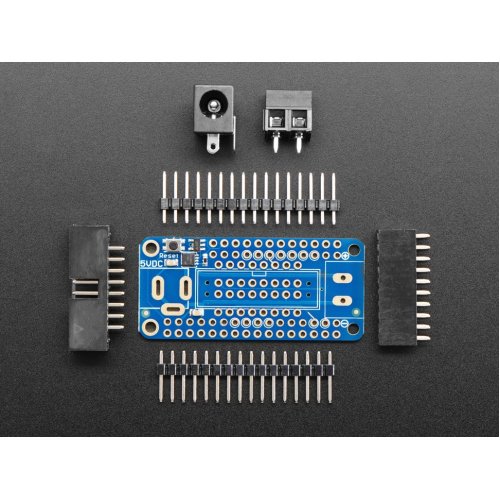

Package Includes:
- 1 x Adafruit 3036 RGB Matrix Featherwing
- 2 x 8 IDC header
- 2 x 10 female socket
- 1 x 2.1mm DC jack
- 1 x 5.08mm terminal block, and some male header
Adafruit 3036 RGB Matrix Featherwing Kit - For M0 and M4 Feathers
- Brand: Adafruit
- Product Code:Ada-3036-Featherwing
- Reward Points:9
- Availability:In Stock
-
रo 954.62
- Ex Tax:रo 809.00
- Price in reward points:854
-
- 50 or more रo 835.44
