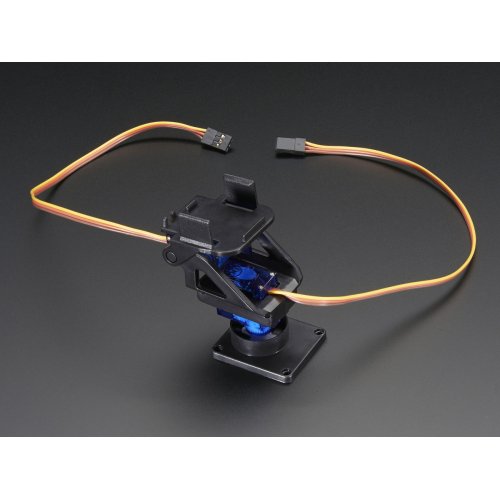

This fully-assembled pan-tilt kit is the perfect way to give your project full range motion with two micro servos. The pan-tilt can rotate roughly 180° from side-to-side and can tilt up&downwards around 150°.  It also comes fully assembled with two Micro Servos (SG-90 or SG-92 type) included and a 38mm x 36mm space to mount a camera or sensor or whatever you like.

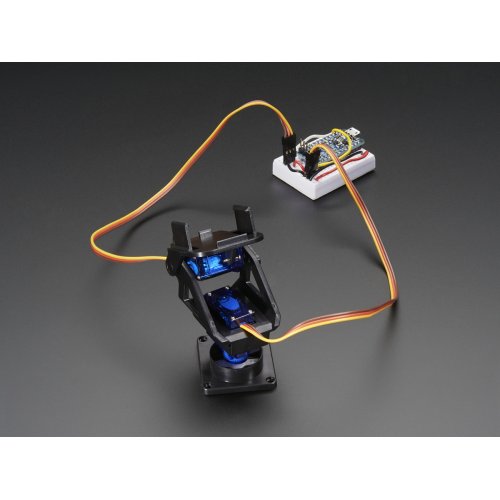

Since the motors are plain, every-day analog servos, you can use any microcontroller or driver. We hooked this up with a Trinket Pro.

Specifications:
  • Base: 37mm x 33mm x 3mm / 1.5" x 1.3" x 0.1"
  • Mounting Hole Distances: 30mm x 26mm / 1.2" x 1"
  • Standing Height (zero tilt): 67mm / 2.6"
  • Top Platform: 38mm x 36mm / 1.5"x 1.4"
  • Weight: 37g
Note: White servo horn comes pre-cut.

Warranty: 30days
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse
Package Includes:
  • 1 x Mini Pan-Tilt Kit - Assembled with Micro Servos

Write a review

Please login or register to review

Adafruit 1967 Mini Pan-Tilt Kit - Assembled with Micro Servos

  • Brand: Adafruit
  • Product Code:Ada-Mini-Pan-Tilt-Kit
  • Reward Points:21
  • Availability:In Stock
  • रo 2,413.10

  • Ex Tax:रo 2,045.00
  • Price in reward points:2157

  • 50 or more रo 2,103.94
