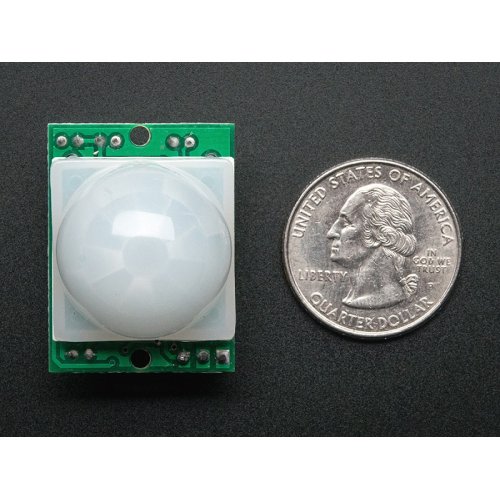

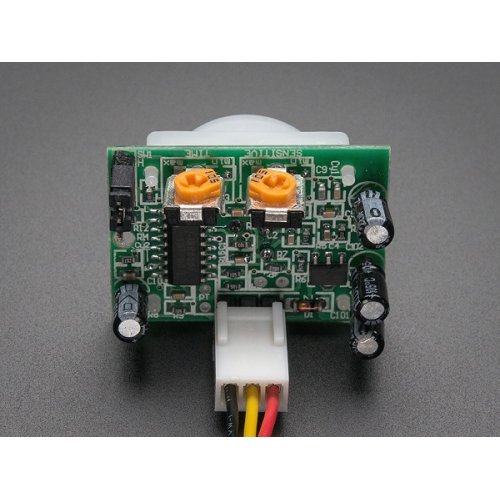

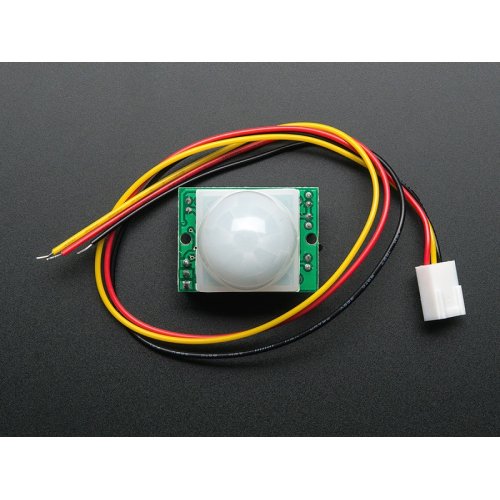

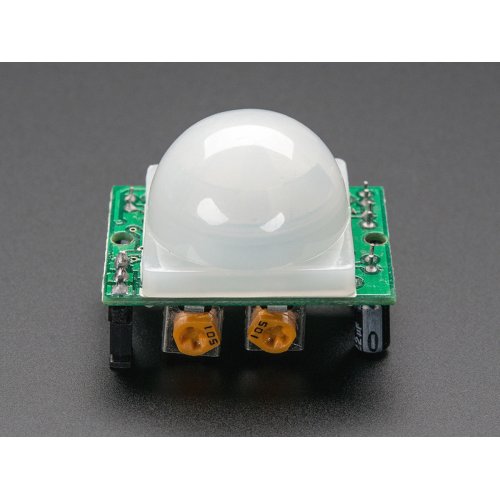

PIR sensors are used to detect motion from pets/humanoids from about 20 feet away (possibly works on zombies, not guaranteed). This one has an adjustable delay before firing (approx 2-4 seconds), adjustable sensitivity and we include a 1 foot (30 cm) cable with a socket so you can easily reposition the sensor or mount it using the two holes on either side.
Runs on 5V-12V power (if you need to run it off of 3V you can do that by bypassing the regulator, but that means doing a bit of soldering). Digital signal output is 3.3V high/low. Sensing range is about 7 meters (120 degree cone).
Technical Details:
- Length: 24.03mm/0.94in
- Width: 32.34mm/1.27in
- Screw hole distance: 28mm
- Screw hole diameter: 2mm
- Height (with lens): 24.66mm/0.97in
- Weight: 5.87g/0.2oz
Note: PIR sensors and the Raspberry Pi sometimes don't get along - if you're having false trigger reports, make sure the PIR Sensor is far away from the Pi
Documents:
- For a full tutorial with wiring diagrams, CircuitPython and Arduino code examples and project ideas, PIR sensor tutorial page!
- For a full tutorial with wiring diagrams, CircuitPython and Arduino code examples and project ideas, PIR sensor tutorial page!
Package Includes:
- 1 x Adafruit 189 PIR (motion) sensor
Adafruit 189 PIR (motion) Sensor
- Brand: Adafruit
- Product Code:Ada-189-PIR-Sensor
- Reward Points:11
- Availability:In Stock
-
रo 1,267.32
- Ex Tax:रo 1,074.00
- Price in reward points:1133
-
- 50 or more रo 1,109.20
- 145 or more रo 1,104.48
