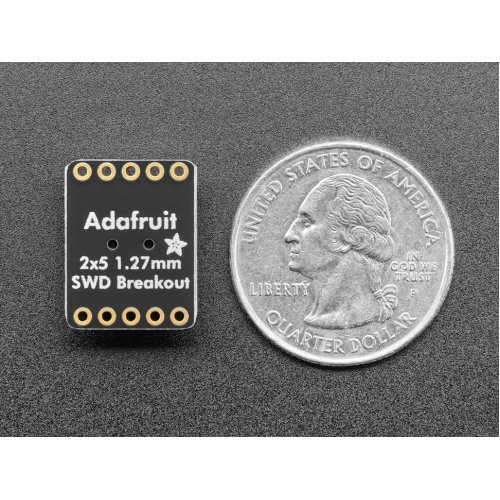

This adapter board is designed to make it easier to use ARM dev boards that use slimmer 2x5 (0.05"/1.27mm pitch) SWD cables for programming. It's helpful for using products like the JTAGulator, STLink or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector, often Cortex M0 or M3's.
This board comes with no cables. It's really just the breakout board and some header if you need it - but is super helpful when you want to use JTAG/SWD debugging.
-
TECHNICAL DETAILS
- 14mm x 18mm x 7mm / 0.55" x 0.7" x 0.3"
- Weight: 1g
- EagleCAD PCB Files on GitHub
- Fritzing object in Adafruit Fritzing library
Adafruit 2743 SWD (2x5 1.27mm) Cable Breakout Board
- Brand: Adafruit
- Product Code:Ada-SWD-cable-breakout-board
- Reward Points:3
- Availability:In Stock
-
रo 375.24
- Ex Tax:रo 318.00
- Price in reward points:336
-
- 50 or more रo 329.22
- 480 or more रo 328.04
