Gigabit SFP optical transceiver:

Simple & Convenient, Plug and Play, Supports Hot-Swappable Operation

Version Options:

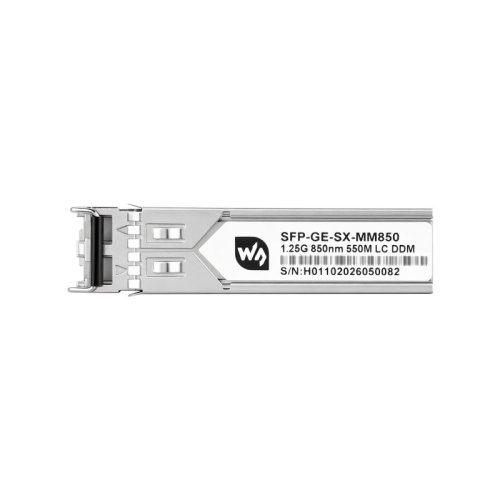

• SFP-GE-SX
• Multi-Mode Dual-Fiber SFP Optical Transceiver
• SFP-GE-LX
• Single-Mode Single-Fiber Optical Transceiver

Specifications:

• Model : SFP-GE-SX-MM : SFP-GE-LX-SM
• Fiber Type : Multi-mode dual-fiber : Single-mode single-fiber
• Wavelength : 850nm : 1310/1550nm
• Transmission Distance : 0.5km : 20km
• Receive Power : ≥-18 (dBm) : ≥-26 (dBm)
• Data Rate : 1.0625 ~ 1.25Gbps
• Transmit Power : -3 ~ -9 (dBm)
• Operating Voltage : +3.3V ± 5%, single power supply
• Power Consumption : <0.7W
• Operating Temperature : -20 ~ +70°C
• Operating Humidity : 5% ~ 90% RH, non-condensing
• Connector Type : LC
• Protocol Standard  : SFP MSA
• MTBF : 100,000 Hours
• Application : IEEE 802.3z 1000BASE-LX compliant optical interface

Digital Diagnostic Monitoring:

(DDM) Technology

Real-time monitoring of optical transceiver status enables quick fault identification, simplifies maintenance, ensures system reliability, and improves work efficiency

Supports Hot-Swappable Operation:

Adopts LC connector for quick connection to optical fiber devices, plug-and-play

Applicable Products:

Outline dimensions:

Package Includes:

• SFP-GE-SX

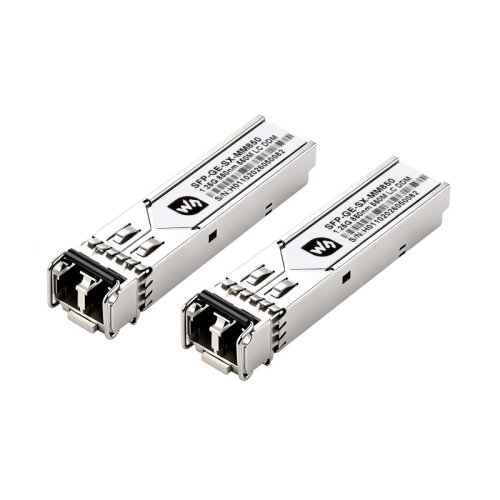

• 2 x SFP-GE-SX-MM850
• 1 x Multimode duplex fiber

                    OR

• SFP-GE-LX
• 1 x SFP-GE-LX-SM1550
• 1 x SFP-GE-LX-SM1310
• 1 x Single-mode simplex fiber
