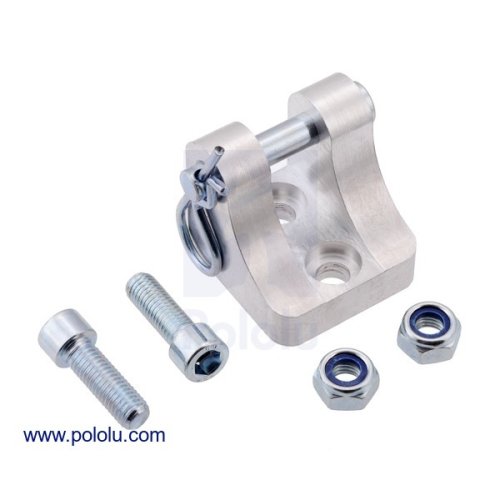

This bracket was designed specifically for the Glideforce Medium-Duty (MD) linear actuators. It is machined out of a single piece of aluminum and has been tested to 560 kgf [1250 lbs or 5600 N] of static load, which is well above the highest static loads the MD actuators are rated for. The mounting pin has a 0.394″ (10 mm) diameter. This bracket is sold individually, and two brackets are required for each linear actuator.
Documents:
Package Includes:
- 1 x Pololu 3623 / 3622 Mounting Bracket for Glideforce Medium-Duty Linear Actuators
