This 12V solenoid valve is used to control the flow of liquid! This is an automated and manual solenoid valve that comes with three colors control wires: red, yellow and blue. Connect the blue wire to positive pole to open the valve, or connect the red wire to positive pole to close the valve. The yellow wire is the shared ground line. If the valve is powered off, it will stop working and keep the current state. You can open or close the valve manually then. This solenoid water valve integrates valve and DC motor in one piece, inside of which has metal reduction gearbox with large torque, low noise and easy to install. We also adopt sealing design for the motor to make the entire structure more reliable. The valve features stable performance, high sensitivity and anti-electromagnetic interference. It can withstand 1.0Mpa static pressure.
Specifications:
- Operating Temperature: -10℃-50℃
- Rated Voltage: 12V DC
- Rated Current: 100mA
- Rated Power: 2W Max
- Valve Pressure: 1.0MPa
- Insulation Resistance: >20MΩ
- Torque: 30-60kg.cm
- Pipe Inner Dimension: 15mm/0.59” / 20mm/0.79”
Documents:
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

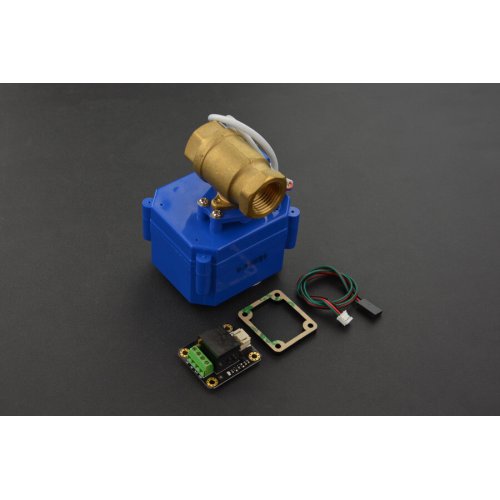

Package Includes:
- 1 x Solenoid Valve-DN15 / DN20
- 1 x Gravity: Digital 5A Relay Module
| Motor Specifications | |
| Torque | 30-60kg.cm |
| Electrical Specifications | |
| Maximum Operating Voltage | 12V DC |
| Maximum Operating Current | 100mA |
| Maximum Operating Power | 2W Max |
| Maximum Operating Temperature | -10℃-50℃ |
| Resistance | Insulation Resistance: >20MΩ |
| Physical Attributes | |
| Dimensions | Pipe Inner Dimension: FIT0616-15mm/0.59” , FIT0617-20mm/0.79” |
| Additional Information | |
| Warranty | 90 days |
