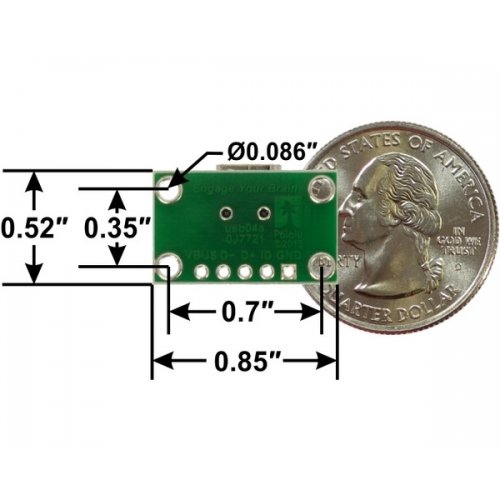

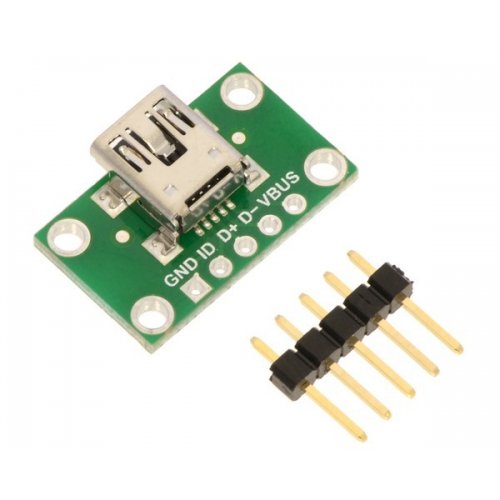

This board breaks out the VBUS, GND, D-, D+ and ID pins of a USB Mini-B connector. The VBUS and GND pins can be used to power your project from USB, while the D- and D+ pins give you access to the USB differential data signals. Each of these pins, along with the ID pin, are broken out into a 1×5 row of 0.1inch-spaced pins on the board. The included 1×5 straight male header can be soldered to these pins to allow the board to be used with perfboards, solderless breadboards, and 0.1″ connectors.

Warranty:

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Pololu 2593 USB Mini-B Connector Breakout Board
