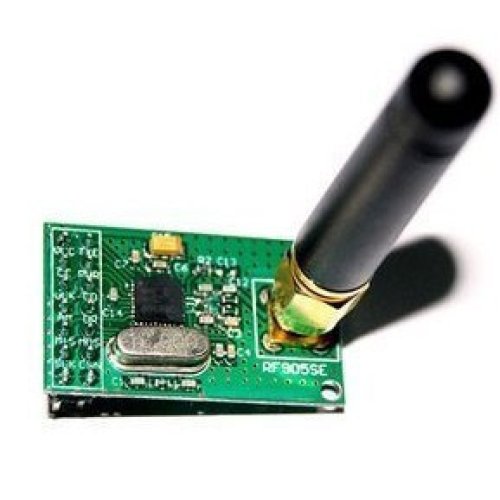

• NRF905 Transceiver 433MHz-Wireless Module

This wireless module  board  using high-performance Nordic VLSI NRF905 radio chip,  the maximum transmission data rates up to 50Kbps with GFSK, sensitivity to-100dBm, high reliability, can be widely used in various occasions, short-range wireless communications (such as wireless meter reading, industrial remote control, low-power handheld equipment, etc.)

  • Operating voltage: 1.9 ~ 3.6V, not more than 3.6V (recommended 3.3V)
  • Low-power, standby mode only 2.5uA
  • Work on the 433MHz band, no need to apply frequency usage license.
  • The maximum operating rate of 50kbps, support GFSK modulation
  • A lower current consumption (Tx Out: 30mA< , RX in, 12.2mA, 433MHz)
  • Rx Sensitivity: -100dBm Built-in hardware, 8 / 16 bit CRC checksum
  • Channel switching time <650ms
  • Programmable control of output power, for all the support frequencies of up to +10 dBm
  • Standard DIP spacing interfaces for embedded applications
  • Transmission Distance: open to the actual transmission distance 200-300 meters (depending on the specific situation of the environment and communication baud rate settings, etc. may be)
  • Module Size: 80mm * 18mm * 15mm (included antenna)

Application:

  • Wireless meter reading, industrial remote control, low-power handheld equipment

  • Wireless sensing, security systems, Vehicle monitoring

  • Industrial data acquisition systems, bio-signal acquisition, hydrological and meteorological monitoring

  • Control processing, wireless data connection, telemetry, small wireless network

  • Wireless meter reading, access control systems, paging area

Write a review

Please login or register to review

NRF905 Transceiver 433MHz-Wireless Module

  • Product Code:PRC-NRF-905-433-MHz-RxTx-Mod
  • Reward Points:5
  • Availability:In Stock
  • रo 513.00
  • रo 485.00

  • Ex Tax:रo 485.00
  • Price in reward points:513
