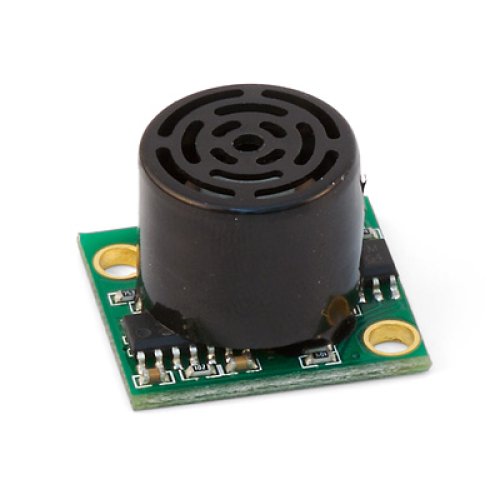

Features of the MB1006, ParkSonar-EZ-108, include one-inch resolution, both proximity and range information for the nearest detectable target, and various output options: high/low logic level and RS232 serial.
The ParkSonar‑EZ line is designed to detect vehicles within a calibrated detection zone. The ParkSonar-EZ proximity sensors report when a vehicle, or other detectable target, enters the detection zone. The target is released after leaving the ParkSonar-EZ’s detection zone.
The MB1006 has a detection zone of ~9 feet. The MB1006 will allow for 14+ simultaneous sensors depending on sensor mounting and environment.
Specifications :
Resolution of 1 inch
~10 second target acquire time*
~5 second target release time*
Automatic multi-sensor operation
Vehicle Detection Sensor
Maximum reported range of 254 inches (645 cm)
Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
42kHz Ultrasonic sensor measures distance to objects
RoHS Compliant
Virtually no sensor dead zone, objects closer than 6 inches typically range as 6 inches
Operates between 2.5 and 5.5V
Low 2.0mA average current requirement
Small, light weight module
Designed for easy integration into your project or product
Proximity Detection zone of 9 feet (108 inches)
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
Base :
| M B 6 0 0 6 |
Three-digit product code :
| CELL 1 | CELL 2 | CELL 3 |
Example :
| 0 | 0 | 0 |
CELL 1:
Housing Style :
| 0 | Not Applicable |
| 1 | 3/4" NPS WR |
| 2 | 3/4" NPS WRC |
| 3 | Ultra Compact |
| 4 | Ultra Compact Flush Mount |
| 5 | 1" NPS |
| 6 | 1" BSPP |
| 7 | 30MM 1.5 |
| 8 | Extended Horn |
CELL 2 :
Options Selected :
| 0 | No Options(Bagged) |
| 1 | F-Option |
| 2 | P-Option |
| 3 | F-Option and P-Option |
| 4 | No Options(Trayed) |
| 5 | TTL(Bagged) |
| 6 | TTL(Trayed) |
CELL 3 :
Wire Attach :
| 0 | No Wire Attach |
| 1 | Wire Attached |
The following table displays all of the active and valid part numbers for this product.
Active Part Numbers :
MB1006-000 and MB1006-040
Doccuments :
- ParkSonar-EZ-108 Datasheet
- RoHS Declaration of Conformity
- CE Declaration of Conformity
- MTBF Report
- High Resolution Pictures.zip
Package Includes :
1 x MaxBotix MB1006 PARKSONAR-EZ-108 - High Performance Proximity Detection Sensor
MaxBotix MB1006-000 PARKSONAR-EZ-108 - High Performance Proximity Detection Sensor
- Brand: Maxbotix
- Product Code: MaxBotix-MB1006-PARKSONAR
- Reward Points: 45
- Availability: In Stock
-
रo 4,456.00
- Price in reward points: 4456
-
- 3 or more रo 4,420.00
- 7 or more रo 4,385.00
- 15 or more रo 4,349.00
- 30 or more रo 4,313.00
