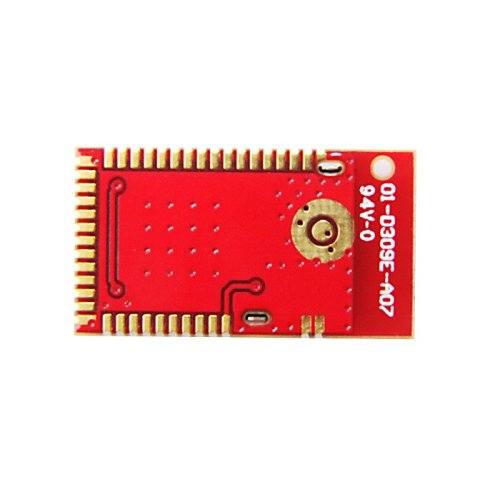

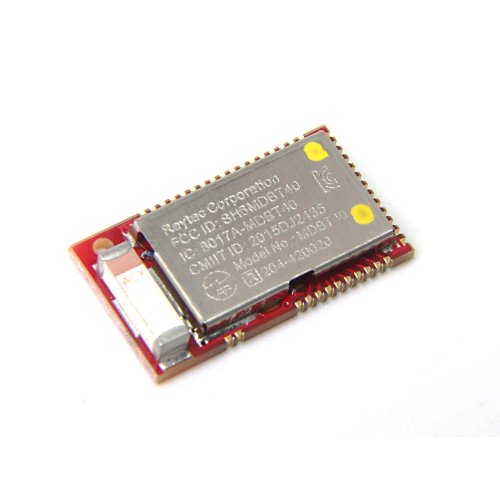

MDBT40 is a BT 4.0 & BT 4.1 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF51822 SoC solution, which incorporates: GPIO, UART, I2C, SPI, PWM and ADC interfaces for connecting peripherals and sensors.

Features :

1. Dual Transmission Mode of BLE & RF 2.4G upon customer preference.

2. Compact size with (L) 18 x (W) 10 x (H) 3.2 mm

3. Low power requirements, ultra-low peak, average and idle mode power consumption.

4. Compatible with a large installed base of mobile phones, tablets and computers.

5. Fully coverage of BLE software stack including:

    Proximity Profile; Heart Rate Profile; Health Thermometer Profile;

    Blood Pressure Profile; Running Speed & Cadence Profile;

    HID Over GATT Profile; Alert Notification Profile; Glucose Profile;

    Cycling Speed & Cadence Profile

6. BLE & RF transmission switching may help products to fit all operation system

7. BLE & RF transmission switching may help products fit all kinds of hardware.

Applications

• Computer peripherals and I/O devices
• Mouse
• Keyboard
• Multi-touch track pad
• Interactive entertainment devices
• Remote control
• 3D Glasses
• Gaming controller
• Personal Area Networks
• Health/fitness sensor and monitor devices
• Medical devices
• Key-fobs + wrist watch
• Remote control toys

Product Dimension

PCB SIZE：(L) 18 x (W) 10 x (H) 3.2 mm

Specifications

• 2.4GHZ transceiver:
• -93dbm sensitivity in Bluetooth low energy mode
•  TX Power -20 to +4dbm
• RSSI (1db resolution)
• ARM Cortex – M0 32 bit processor:
• Serial Wire Debug (SWD)
• S100 series SoftDevice ready
• Memory:
• 256kb embedded flash programmed memory
• 32kb RAM
• Support for non-concurrent multiprotocol operation
• On-air compatibility with nRF24L series
• Flexible Power Management:
• Supply voltage range 1.8V to 3.6V
• 2.5us wake-up using 16MHz RCOSC
• 0.6uA @ 3V mode
• 1.2uA @ 3V in OFF mode + 1 region RAM retention
• 2.6uA @ 3V ON mode, all blocks IDLE
• 8/9/10 bit ADC- 8 configurable channels
• 31 General Purpose I/O Pins
• One 32 bit and two 16 bit timers with counter mode
• SPI Master / Slave
• UART (CTS/RTS)
• CPU independent Programmable Peripheral Interconnect (PPI)
• Quadrature Decoder (QDEC)
• AES HW encryption
• Real Timer Counter (RTC)
• Main Chip Solution:
• RF IC: Nordic NRF51822/QFN48
• Crystal Frequency 16MHZ

Technical Details

Part List

Documents

MDBT40 & MDBT40-P Spec(Ver.A7)

BQB Certificate
