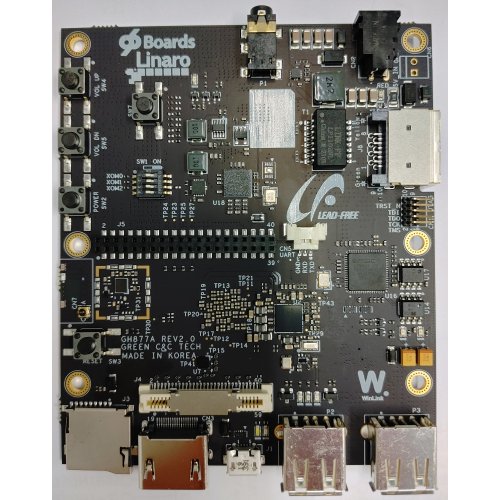

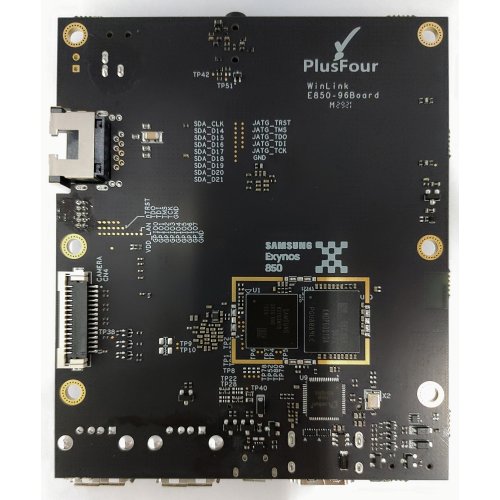

-500x500.jpg "96Boards WinLink E850-96 Board")
WinLink E850-96 Board is a 96Boards CE HW Specification V2.0 Development Board based on Samsung Exynos 850 Mobile processor, developed by WinLink.
- Exynos 850 is manufactured on 8nm low-power FinFET process design, high performance optimized Little Cortex-A55 Octa micro-processor for smart phone and tablet applications and also for embedded gadgets.
- The Exynos 850 enables high-quality display resolutions, support for up to FHD+ (2520x1080) resolution, sharp video on their devices. The Exynos 850 processer also contains the HEVC (High Efficiency Video Coding) codec, which enables FHD(1920X1080) 60fps encoding and decoding simultaneously.
- Exynos 850 provides the Mali-G52 GPU with wide range of APIs such as OpenGL ES1.1/2.0/3.2, OpenCL 2.0 Full Profile and Vulkan 1.0/1.1. Video processing supports FHD+(1080x2520) resolution.
- WinLink E850-96 Board is 100mm x 85mm in size, 96 Boards CE(Consumer Edition) Extended version including NPU.
Additional Information:
Component Description
| Component | Description | |
| SoC | Exynos 850, 64-bit | |
| CPU | Cortex-A55 Octa core up to 2.0GHz | |
| GPU | ARM Mali G52MP1, 2nd Generation Bifrost architecture | |
| OpenGL ES1.1/2.0/3.2 OpenCL 2.0 Full Profile and Vulkan 1.0/1.1 | ||
| RAM | 4GBytes LPDDR4 on board(MCP, KMDP6001DA-B425) | |
| Storage | eMMC v5.1, 64GB onboard(MCP, KMDP6001DA-B425) and 1 x MicroSD card slot | |
| Ethernet Port | 1x10/100 Ethernet (RJ-45) socket | |
| Wireless | WiFi 2.4/5GHz & BT5.0 (S612 RF transceiver) | |
| USB | 1 x USB 2.0 Micro B (Debug only ), | |
| 2x USB 2.0 Type A (Host mode only) | ||
| Display | HDM | |
| Video | HEVC (High Efficiency Video Coding) codec which enables FHD(1920X1080) 60fps encoding and decoding simultaneously | |
| Audio | Stereo Headphone output & MIC input via 3.5mm Audio Jack | |
| Built-in audio interfaces HMU(Headphone Management Unit) by PMIC | ||
| Camera | Up to 3-image sensor(camera) inputs with a max. resolution of 21.7MP Bayer supported | |
| Expansion Interface | 40-Pin Low Speed Header | |
| 60-Pin High Speed Header | ||
| LED | 3x green user controlled LEDs | |
| 1x blue Bluetooth enabled | ||
| 1x yellow WiFi enabled | ||
| Button | Power, Volume UP/DN, Resets | |
| Power Source | 12V@2A adapter with a DC plug: | |
| Plug specification is inner diameter 1.75mm and outer diameter 4.75mm | ||
| OS Support | TAOSP(Android-10 based k4.14) / LINUX(TBD) | |
| Size | 100mm x 54mm meeting 96Boards™ Consumer Edition Extended Standard form dimensions specifications |
Documentation:
Package Includes:
- 1 x 96Boards WinLink E850-96 Board
96Boards WinLink E850-96 Board
- Brand: 96 Boards
- Product Code:NR-96Boards-WinLink-E850-96-Board
- Reward Points:619
- Availability:In Stock
-
रo 71,926.90
- Ex Tax:रo 60,955.00
- Price in reward points:61945
-
- 2 or more रo 71,342.80
- 3 or more रo 70,758.70
