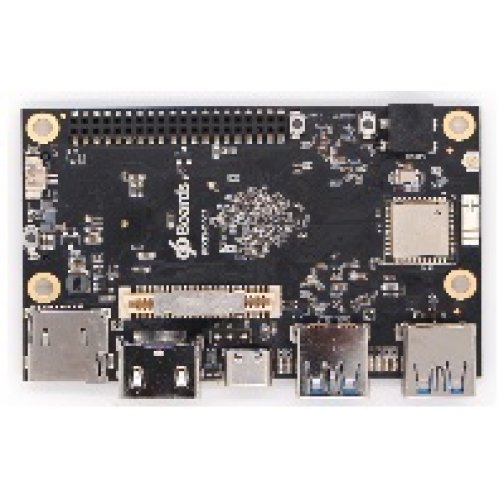

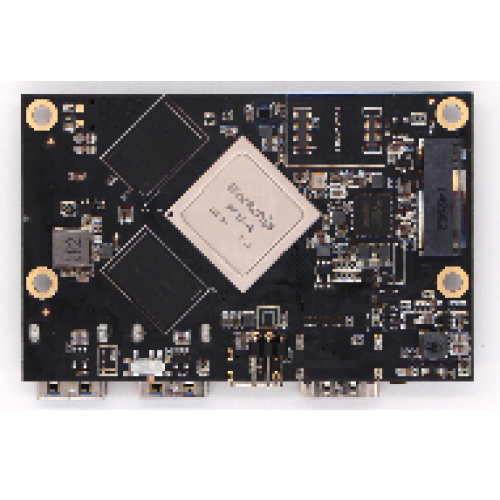

The Rock960c is based on the RK3399 SoC which is a Dual Cortex-A72 + quad Cortex-A53 CPU, with up to 2.0GHz frequency. This board comes packed with 1GB, 2GB or 4GB of RAM, on board eMMC socket, USB 3.0 type C with DP, HDMI 2.0 with 4K output, 4 lane M.2 PCI-E 2.1, and so much more! All of this on the 96Boards Consumer Edition Standard form factor, a truly little beast.
| Component | Description |
|---|---|
| SoC | Rockchip RK3399 |
| CPU | ARM Cortex-A72 Dual-core up to 1.8GHz + Cortex A53 Quad-core up to 1.4GHz |
| GPU | ARM Mali T860MP4 |
| RAM | 1GB or 2GB or 4GB LPDDR4, 3200Mb/s |
| PMU | RK808-D |
| Storage | Reserve eMMC socket on board, optional eMMC module up to 128GB, uSD card up to 128GB |
| Ethernet Port | USB 2.0/3.0 expansion |
| Wireless | WLAN 802.11 ac/a/b/g/n, 2.4GHz and 5Ghz, Bluetooth ® wireless technology 4.2. On board WLAN/BT antennas, optional IPEX antenna. |
| USB | 1 x USB 3.0 host type A, 1 x USB 3.0 OTG type A and 1 x USB 2.0 type C(host only) |
| Display | 1 x HDMI 2.0(Type A - full) up to 4Kx2K@60Hz, 1 x 4L - MIPI DSI up to 1080p@60Hz |
| Video | Inside decoder: H.264 10bit up to HP level 5.1 - 2160p@60fps (4096x2304), VP9 - 2160p@60fps(4096x2304), H.265/HEVC 10bit - 2160p@60fps(4096x2304), MPEG-1, MPEG-2, MPEG-4, H.263, VP8, VC-1. |
| Audio | HDMI output |
| Camera | 1 x 4-lane MIPI CSI, 1 x 2-lane MIPI CSI |
| Expansion Interface | 40 pin low speed expansion connector: +1.8V, +5V, DC power, GND, 2UART, 2I2C, SPI, I2S, 12xGPIO and 60 pin high speed expansion connector: 4L-MIPI DSI, I2C x2, SPI (48M), USB 2.0, 2L+4LMIPI CSI |
| LED | 1 x WiFi activity LED（Yellow), 1 x BT activity LED (Blue) and 4 x User LEDs (Green) |
| Button | Reset button, Maskrom button, Loader button |
| Power Source | Recommend a 12V@2A adapter with a DC plug which has a 4.75mm outer diameter and 1.7mm center pin with standard center-positive (EIAJ-3 Compliant) |
| OS Support | AOSP/Debian/Ubuntu/Fedora/LibreELEC/Lakka/FlintOS |
| Size | 85mm x 55mm |
Package Includes :
1 x 96Boards Rock960c (Vamrs)
96Boards Rock960c (Vamrs)
- Brand: 96 Boards
- Product Code:96Boards-Rock960c
- Reward Points:118
- Availability:Out Of Stock
-
रo 13,999.52
- Ex Tax:रo 11,864.00
- Price in reward points:11864
