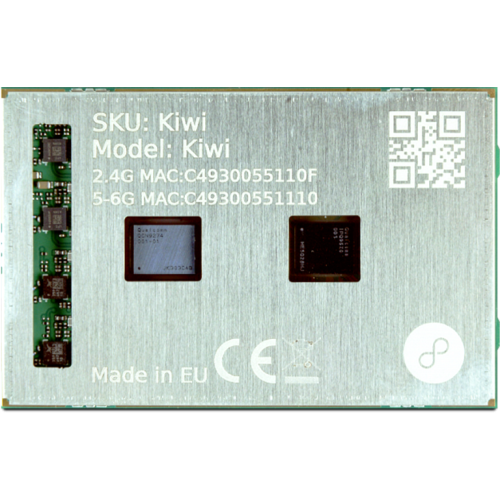

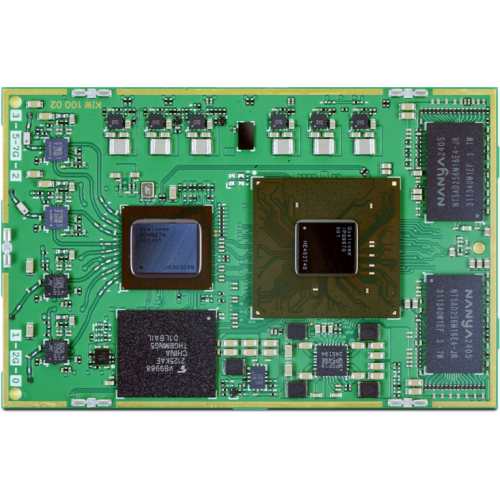

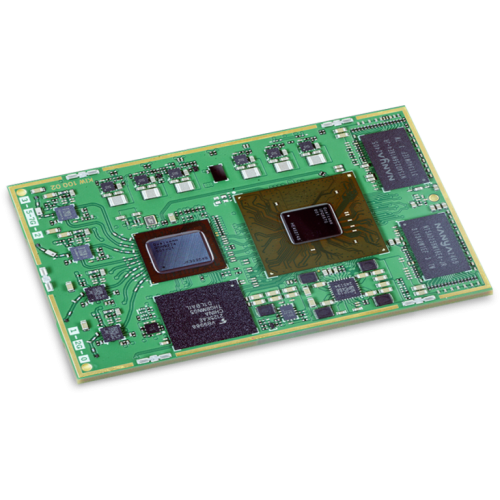

The Kiwi Wi-Fi 7 SoM uses the Qualcomm IPQ9570 SoC and the QCN9274 radio chip to deliver high-performance Wi-Fi 7 connectivity and high-throughput multi-user support. Tri-band connectivity, powerful RF output, and the latest high-speed interfaces make Kiwi perfect perfect for your next cutting-edge networking project.

• Qualcomm IPQ9570 / QCN9274
• This powerful combo provides a high-end SoM with a 64-bit 2.2 GHz ARM Cortex-A73 processor, 1 GB DDR4, and 4GB eMMC
• Tri-band connectivity
• Kiwi’s integrated tri-band radio delivers versatile, flexible and robust operation. 2.4GHz delivers high ranges at low speeds, 5GHz offers an optimal balance, and 6GHz maximizes speed at shorter ranges.
• Mass-user support
• Kiwi supports 4k QAM modulation, MU-MIMO and Multi-Link load management to support hundreds of high-throughput connections
• Cutting-edge performance
• The Kiwi SoM delivers powerful Wi-Fi 7 throughput, offering your customers superior performance of over 5 Gbps over channels of up to 320MHz
• High-performance interfaces
• USXGMII ethernet, USB 3.0, PCIe 3.0 and other high-powered interfaces ensure that Kiwi will work with cutting-edge network equipment
• Network hub powerhouse
• Kiwi’s WDS-STA support, high-performance interfaces, and support for multiple connected Noni radio module units make it optimal as a hub for high-performance high-user-count networks

Public safety spectrum support

• This product is suitable for developing critical networked devices for public safety applications. With the right firmware build, Kiwi will support the 4940-4990 MHz band, which the US Federal Communications Commission has allocated to public safety communications.

Kiwi supports FirmUx

Kiwi FirmUx Networking and OpenWrt upstream support will be launched in Q4 2025. FirmUx Networking is a proprietary embedded Linux framework that provides developers with powerful tools and integration procedures. Use it to unlock powerful network features and build your own full-featured firmware and device software.

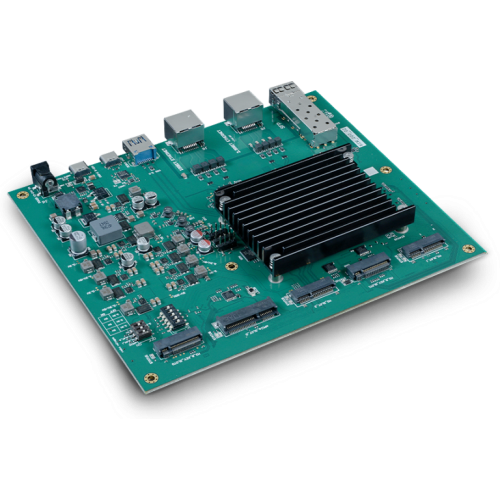

Development board details

Explore more about the development board components by hovering over a bullet points.

Specifications:

Platform:

• SoC:  IPQ9570 from Qualcomm
• CPU: ARM Cortex-A73 @ 2.2GHz; 64-bit
• GPU: N/A
• Flash: 4GB eMMC
• RAM" 1GB DDR4

Interfaces:

• Ethernet Two USXGMII, 10GBase-R, SGMII+ or SGMII, One USXGMII-M, PSGMII, QSGMII, SGMII+ or SGMII
• USB USB 3.0
• PCIe PCIe 3.0 (x2 single lane and x1 dual lane)
• Serial Interfaces UART, SPI, I2C
• GPIOs 34
• Miscellaneous PWM, I2S

Wireless:

• Wireless Standard Wi-Fi 7 (IEEE 802.11 a/b/g/n/ac/ax/be)
• Bluetooth Standards N/A
• Radio Mode Tri-band MU-MIMO (2x2)
• Frequency 2412-2442 MHz & 4900-7125MHz;
• Channel Size 20, 40, 80, 160, 320 MHz
• Data Rate up to 11,000 Mbps
• Antenna Options 4 x LGA pads on module
• Max Output Power (per chain) 23 dBm

Software Options:

• FirmUx
• Linux OpenWrt

Module Specs:

• Power Supply 3.3V
• Power Consumption 12W
• Dimensions 38.3 x 61.7 mm;
• Weight 20g
• Temperature Range Commercial version 0°C - 65°C Industrial version -40°C - 85°C
• Mounting Solderable module
• Pin Type LGA pins
• Certifications CE/ FCC/ IC - TBD

Documentations:

• Product Brief
• Datasheet
• Kiwi step files
• Kiwi development kit hardware files
• Altium library files

Package Includes:

• 1 x 8devices Kiwi
