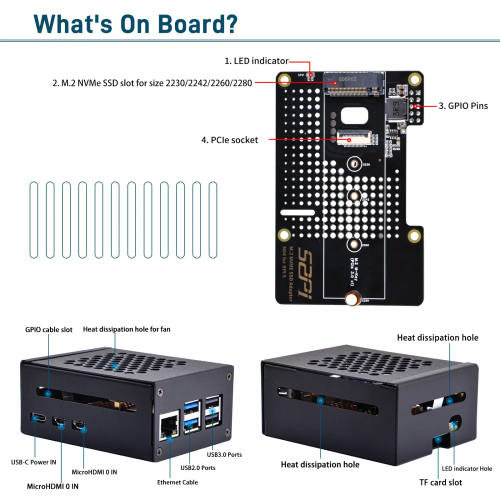

N04 is an NVME M.2 SSD(NVMe 2230, 2242, 2260, 2280 GEN 3) PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIe interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

N04 is compatible with the standard HAT size of Raspberry Pi and supports quad sizes of NVMe SSD: 2230, 2242, 2260 and 2280. The included SSD mounting screws make it convenient for users to switch between the two sizes at any time.

Features:

• Designed for RPI 5: Dedicated to the latest single-board computer, the Raspberry Pi 5.
• NVMe Capability: Supports installing NVMe (M-key) drives in M.2 format sizes 2230, 2242, 2260 and 2280, extra custom CNC SSD mount screw, no soldering required.
• PCIe Support: PCIe x1 interface in both Gen2 & Gen3 standards.
• Ventilation hole design: Ventilation hole design provides excellent ventilation airflow for cooling.
• Camera/Display fpc cutout: The openings in the PCB allow for the routing of two Display/Camera FPC cables.
• Gold-plated PCB: Gold-plated PCBs offer superior electrical performance.
• PCIe ultra-short signal lines: The short trace routing of PCIe is more reliable and faster, fully meeting the signal requirements of PCIe 3.0.
• LED Indicators: Features LED light for M.2 disk activity (“ACT”).
• M.2 Standard-Compliant Power System: Integrated voltage regulator delivering up to 3A for the 3.3V power rail, compliant with M.2 (NGFF) standard.

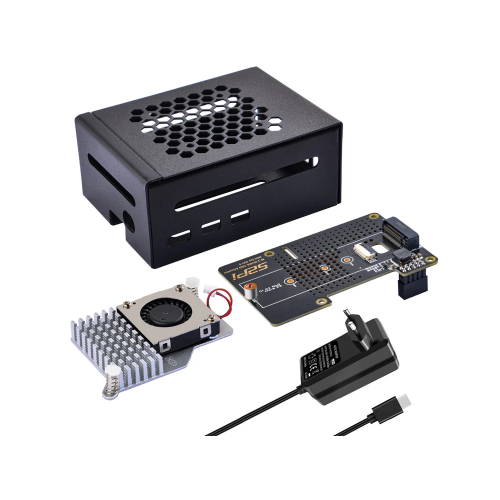

• All Necessary Accessories Included: Comes with a FPC PCIe ribbon, M2 and M2.5 screws, spacers, and extra custom CNC SSD mount screw.

Documentation:

• EP-0210 - 52Pi Wiki

Package Includes:
