This is an expansion board for the Raspberry Pi 5. It can convert the Raspberry Pi 5's Micro HDMI to Full-size HDMI, making it easier to connect to standard HDMI cables. It also supports PCIe 3.0x1 devices with an M.2 M-key slot, such as M.2 M-key NVMe SSD 2230/2242 drives. The board allows the Raspberry Pi 5's USB-C to be connected to the rear of the board for more rational wiring and greater convenience for DIY users to build their own Raspberry Pi 5 applications. Currently, due to the on-board PCIe interface settings, it only supports the Raspberry Pi 5 device.

Features:

• M.2 M-key Slot support NVMe SSD Length: 2230/2242
• PCIe Sock: PCIe 3.0 x1
• INPUT MicroHDMI Port: 2 x Female MicroHDMI
• OUTPUT HDMI Port: 2 x Full-sized HDMI Port
• Power INPUT: USB-C (27W Power supply or 27w Official Power Supply)

Documentation:

• Wiki

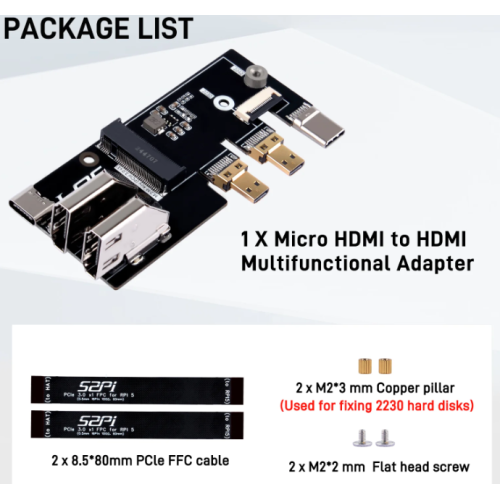

Package Includes:

• Note: the Raspberry Pi board are not included!
