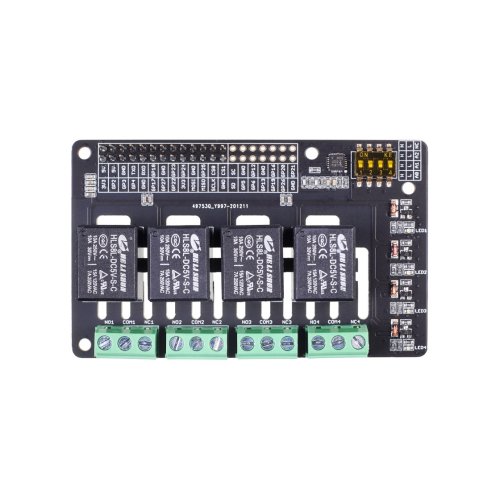

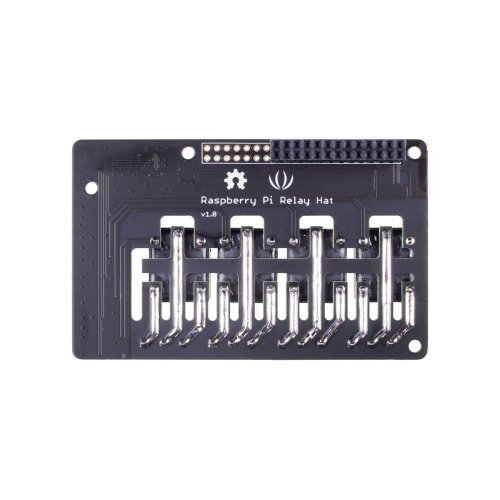

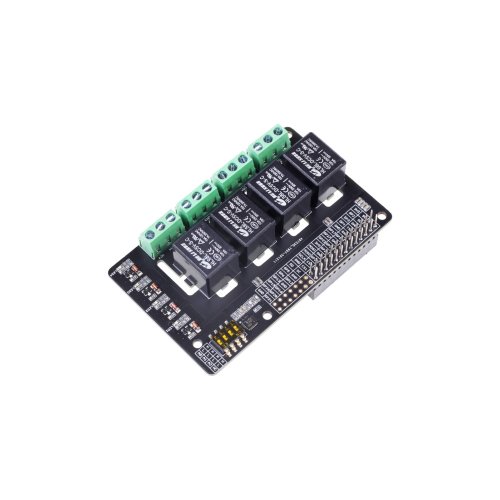

The 4-Channel SPDT Relay HAT for Raspberry Pi utilizes four high-quality SPDT (single pole - double throw) relays and provides NO/NC (Normally Open/ Normally Closed) interfaces that can control the load of high current. This means it could be a nice solution for controlling devices that can't be directly controlled by the I2C bus. The standardized shield form factor enables smooth connection with a Raspberry Pi and it also has four LED indicators that show the on/off state of each relay.
Features:
- High-quality SPDT (single pole - double throw) relays
- Compatible with Raspberry Pi 1/2/3/4
- I2C interface with three hardware SW1 (1, 2, 3) to select the fixed I2C-bus address
- Relay screw terminals for easy connection
- Standardized shield shape and design
- LED working status indicators for each relay
- COM, NO (Normally Open), and NC (Normally Closed) relay pins for each relay
Specifications:
- Power Supply 4.75 ~ 5.5V
- Max Switching Voltage 30VDC/ 250VAC
- Max Switching Current 15A
- Frequency 1Hz

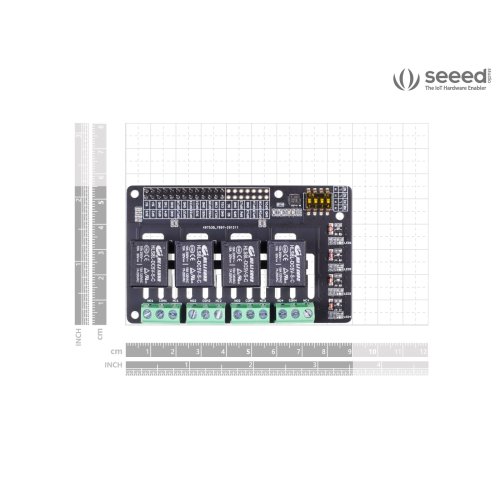

- Dimensions 91.2 x 56 x 32mm
Documents:
Warranty: 12 months
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x 4-Channel SPDT Relay HAT for Raspberry Pi
4-Channel SPDT Relay HAT for Raspberry Pi
- Brand: Seeed Studio
- Product Code:Seeed-SPDT-Relay-HAT
- Reward Points:26
- Availability:In Stock
-
रo 3,068.00
- Ex Tax:रo 2,600.00
- Price in reward points:2600
-
- 80 or more रo 2,380.06
