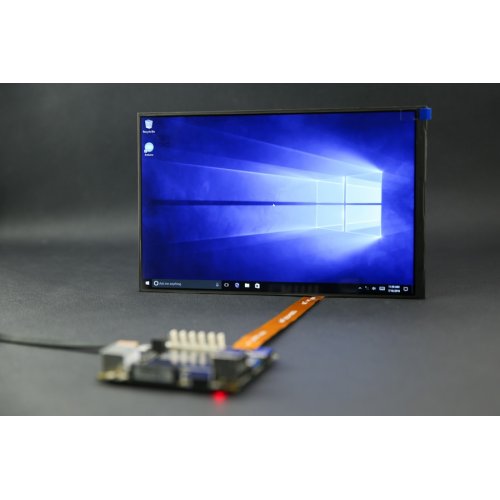

This 10.1 inch high-resolution 1200 x 1920 IPS display is especially designed as a monitor for LattePanda V1 a windows 10 development board (not compatible with LattePanda Alpha & Delta). It gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects, even adding a face for your robot, you can expand your imagination, make more fun.

Up to 224 PPI, this 1200 x 1920 display will creating an impression of sharp print-like text. And only one connection to the LattePanda is required, it connects via an FPC cable which handles power and signal conversion. So, there is no need for the adapter board and it releases HDMI port to build dual-screen.

Note:

• LattePanda and power supply are NOT included!
• Please use a 5V@3A power supply to driver the LattePanda with this high-resolution display.
• This is a portrait display, you can set in system to rotate the page
• It can't be used with LattePanda Z8300 CR110 boards.
• NOT compatible with LattePanda Alpha and Delta edition.

Specifications:

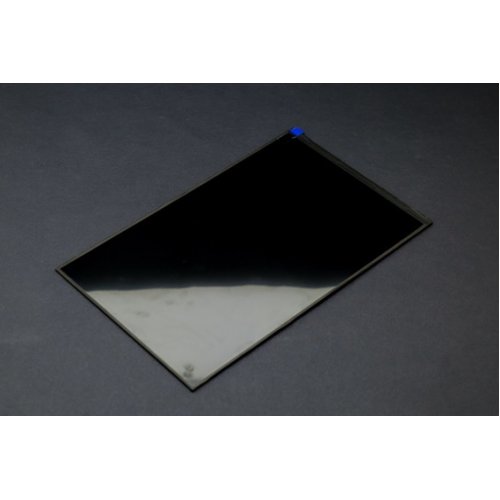

• Screen Size: 10.1 inch
• Active area Dimensions: 135 x 217 mm/5.31 x 8.54 inches (10:16)
• Display Dimensions: 143 x 230 x 2.2 mm/5.6 x 9.05 x 0.1 inches
• Panel Type: TFT-LCD
• Resolution (RGB): 1200x1920, WUXGA
• Brightness: 300 cd/m^2
• Contrast Ratio: 800:1 (Typ.)
• Rated power: 3W
• Signal input: MIPI-DSI
• Weight: 190 g

Documents:

• Dimension Diagram with Pinout
• BIOS Update Tutorial
• BIOS for 32G/64G

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

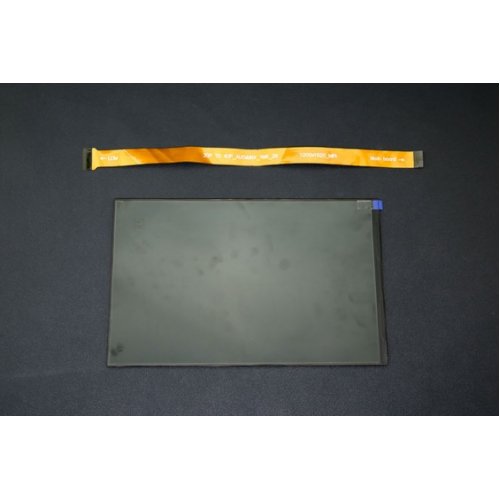

• 1 x 10.1 inch 1200 x 1920 IPS Display for LattePanda
• 1 x FPC cable
