The NanoPi NEO and NanoPi NEO2 are pin-to-pin compatible super-mini ARM computers released by FriendlyElec.

The NanoPi NEO uses Allwinner's quad-core Cortex-A7 H3 SoC while the NanoPi NEO2 uses Allwinner's 64-bit

quad-core Cortex-AS3 H5 SoC. Both have onboard Ethernet and USB.

The 1-bay NAS Dock V1.2 for NanoPi NEO V1.31/V1.4 & NEO2 V1.1 uses high speed USB 3.0 to SATA chip JMSS67. It

has an onboard RTC battery. It works with the latest mainline kernel Linux-4.11 and Debian8-Jessie.

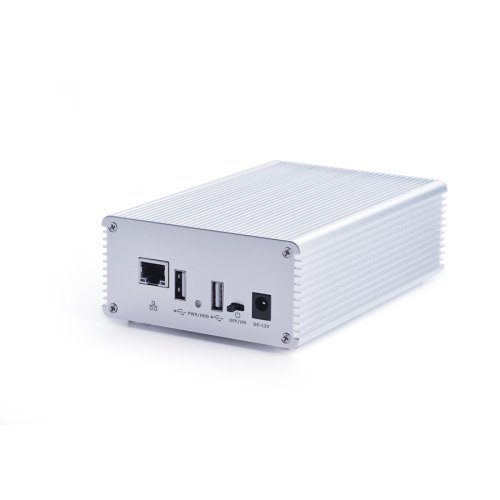

With this kit and a NanoPi NEO&NEO2 you can quickly and easily assemble a NAS storage server. A super cool alumi-

num housing, a stable and reliable power system, capacity to hold a 2.5" SATA hard disk, a ready system of Debian +

OpenMediaVault all these fuse together to a YOU CANNOT MISS DIY NAS kit!
Features:

• Support NanoPi NEO&NEO2
• USB3.0 to SATA chip JMS567
• Latest Mainline Kernel 4.11
• Debian 8
• Aluminum Case

• Up to Gbps Ethernet

Kit Includes

• 1-bay NAS Dock v1.2 for NanoPi NEO V1.31/V1.4 & NEO2 V1.1
• Aluminum enclosure (NS-120B)
• Heat Sink for NanoPi NEO
• M3*6mm Screws
• M2.5*6mm Screws
• pad
