• SLABS-32

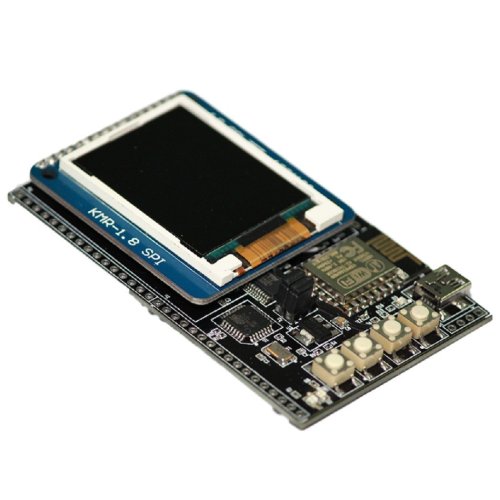

Slabs-32 is a microcontroller based board using the powerful combination of an 8 bit microcontroller- Atmega328P and Tensilicas’s 32 bit L106 diamond series microcontroller. This board combines the high processing capabilities of 32 bit microcontroller L106 and numerous GPIOs available for HMI on the Atmega328p. With I2C as interprocessor communication, Slabs-32 board facilitates a combination of processing power and sufficient GPIOs for all your complex protoyping needs. The board has built-in Wi-Fi support, a USB port for programming and debugging, a SD card slot, 5 analog inputs, 12 GPIOs (few having PWM capability) and an 8 MHz crystal. It has on board LEDs for indication of power and bidirectional serial data transfer. There is one independent reset switch and one user programmable interrupt button each for both the microcontrollers onboard.



The Slabs-32 distinguishes itself from other IoT development boards by having a high resolution TFT to display the data acquired data in real time. The data can also be stored in the SD card (Not included in the kit) and simultaneously be pushed to the web-server for further analysis and display at a remote location. Slabs32 can be programmed using Arduino IDE. The product also comes with a ata visualization tool for desktop version.

Technical Specifications:

  • Frequency band - 2.4 GHz (802.11 b/g/n/e/I support)
  • Standards for Wi-Fi module - FCC/CE/TELEC/SRRC
  • Tx power - 802.11 b: +20 dBm, 802.11 g: + 17 dBm, 802.11 n: +14 dBm
  • Rx sensitivity - 802.11 b: -91 dBm (11 Mbps), 802.11 g: -75 dBm (54 Mbps), 802.11 n: -72 dBm
  • Wi-Fi module’s integrated CPU - Tensilica L106 32 bit microcontroller
  • Wi-Fi module operating current - ~ 80 mA @ 3.3 V DC
  • Security - WPA/ WPA2
  • Encryption - WEP/TKIP/AES
  • Network protocols - IPv4, TCP/UDP/HTTP/FTP
  • 8 bit Microcontroller - Atmega328P
  • Program memory - 32 KB flash,2 KB SRAM, 1 KB EEPROM32 KB flash,2 KB SRAM, 1 KB EEPROM
  • Oscillators - 8 MHz crystal oscillator for ATmega328p
  • Interfaces - I2C, SPI, UART, ADC, GPIOs
  • Power supply - Onboard 3.3 V LDO, 800 mA max current
  • Timers - Two 8 bit timers
  • SD card capacity - 32 GB (Not included in the kit)
  • TFT Display - Maximum 18 bit/pixel, RGB 6-6-6, 262K colors
  • Form factor - 86 mm x 53 mm approximately



Write a review

Please login or register to review

SLABS-32

  • Product Code:STL-SLABS-32
  • Reward Points:29
  • Availability:In Stock
  • रo 2,914.00

  • Ex Tax:रo 2,914.00
  • Price in reward points:2914
